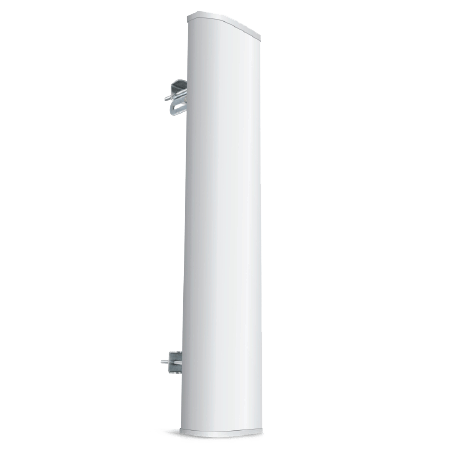

Sector Antenna

  • ADS-B and FLARM transceivers used in the drone technique have relatively small RF transmitting power. Efficient tracking of such objects requires the design of highly sensitive receivers.

  • The antenna technology is helpful in this case, which allows for significant improvement of input sensitivity. Sector antennas allow increasing the operating range of ADS-B/FLARM signals in selected directions several times.

  • This product is easy net-workable using LTE connectivity and is optimized to work in harsh environments. Apart from drone technology, the antenna can be used in manned traffic surveillance ADS-B.

Featured:

Application:

See beyond

Basic Electrical specification:

ParameterDescriptionTyp.Unit
First BandADS­-B1090MHz
Second BandFLARM868MHz
Sensitivity (ADS­-B) -100dBm
Sensitivity (FLARM) -130dBm
V pol beamwidth (6dB) 120deg
Elevation beamwidth (6dB) 15deg
Integrated GNSSMulti­-GNSS for precise time stamp
LTE Cat. 1Data transport layer (global bands)
Dimensions 129 x 29 x 13.4cm
Weight 13kg
Power consumption 1.5W
