This evaluation kit brings everything you need to run your SC1-EXT module and quickly get started with the development of your MODE A-/-C/-S and ADS-B system. For more advance users this module also provides precise time stamp for enabling multi-lateration implementations. It is an excellent option for those who want to familiarize themselves with the module from the software side and later use the dedicated hardware and software solutions created by Aerobits. Each set is also equipped with appropriate additional elements such as antenna, USB cable, etc.
This kit brings everything you need to run your MC1 module. You do not have to worry about PCB design, impedance matching and power supply issues. We took care of everything and the connection is very simple: on the one side a USB connector and on the other – an antenna connector. It is also an excellent option for those who want to familiarize themselves with the module from the software side and later use the dedicated hardware and software solutions created by Aerobits. Each set is also equipped with appropriate additional elements such as antenna, USB cable, etc.

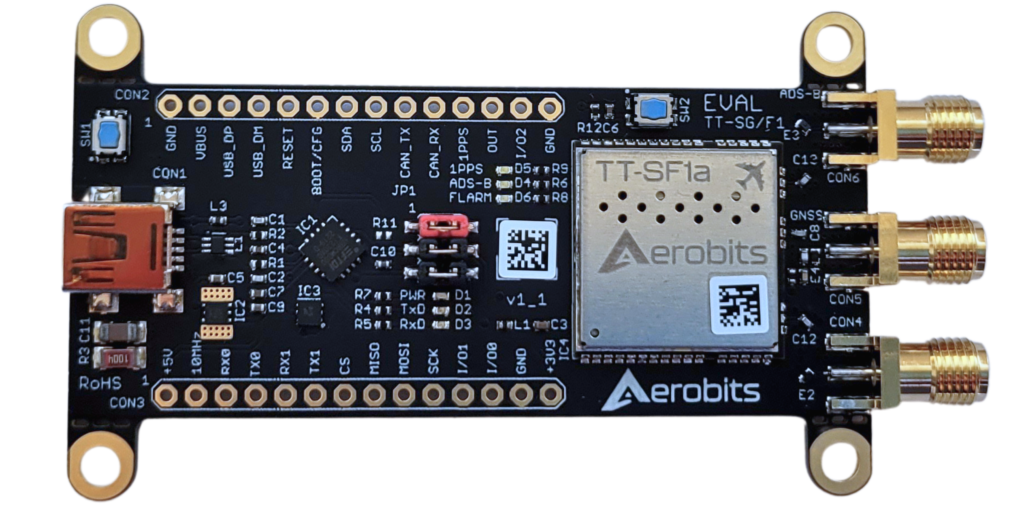

This evaluation kit provides a quick introduction to the SF1 module for ADSB/GNSS receiver and FLARM transceiver. EVAL-TT-SF1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping. The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views. Each set is also equipped with appropriate additional elements such as antenna, USB cable, etc.

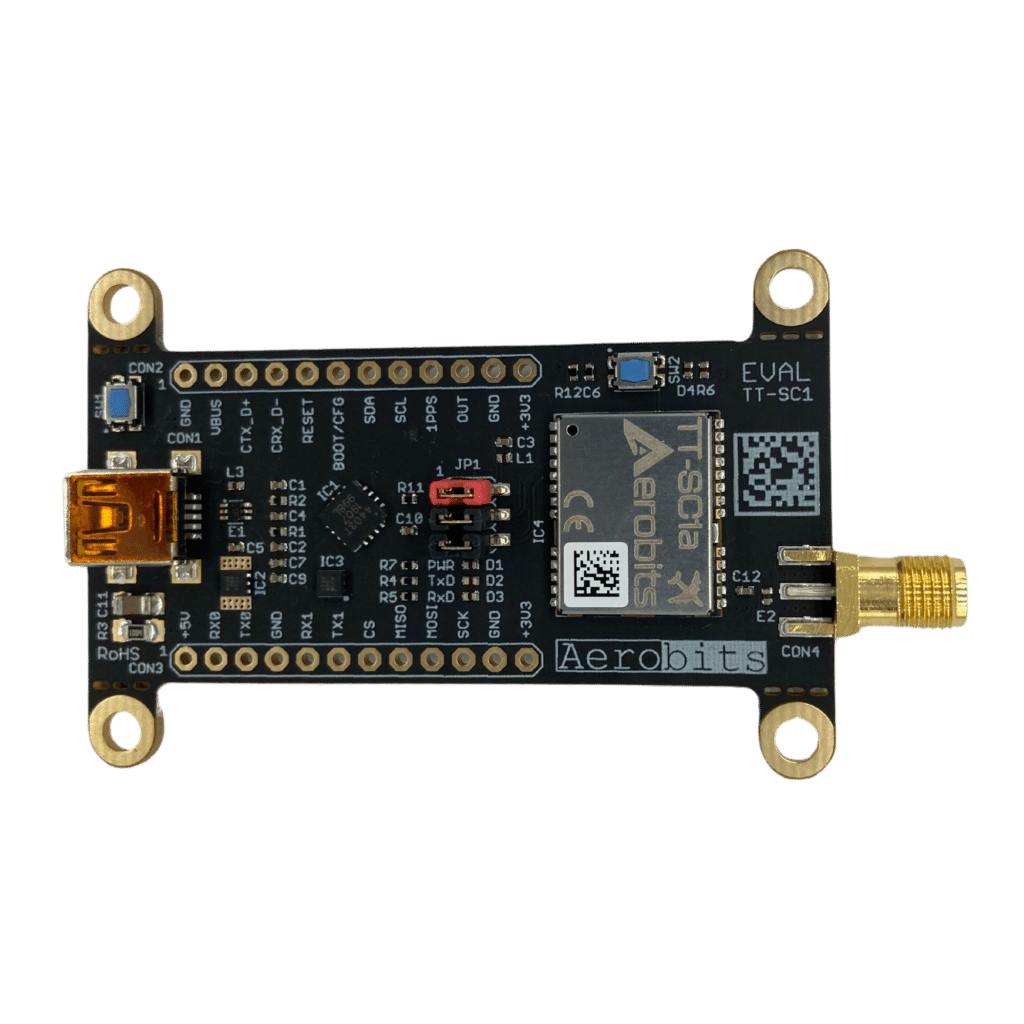

This kit brings everything you need to run your SC1 module. You do not have to worry about PCB design, impedance matching and power supply issues. We took care of everything and the connection is very simple: on the one side a USB connector and on the other – an antenna connector. It is also an excellent option for those who want to familiarize themselves with the module from the software side and later use the dedicated hardware and software solutions created by Aerobits. Each set is also equipped with appropriate additional elements such as antenna, USB cable, etc.

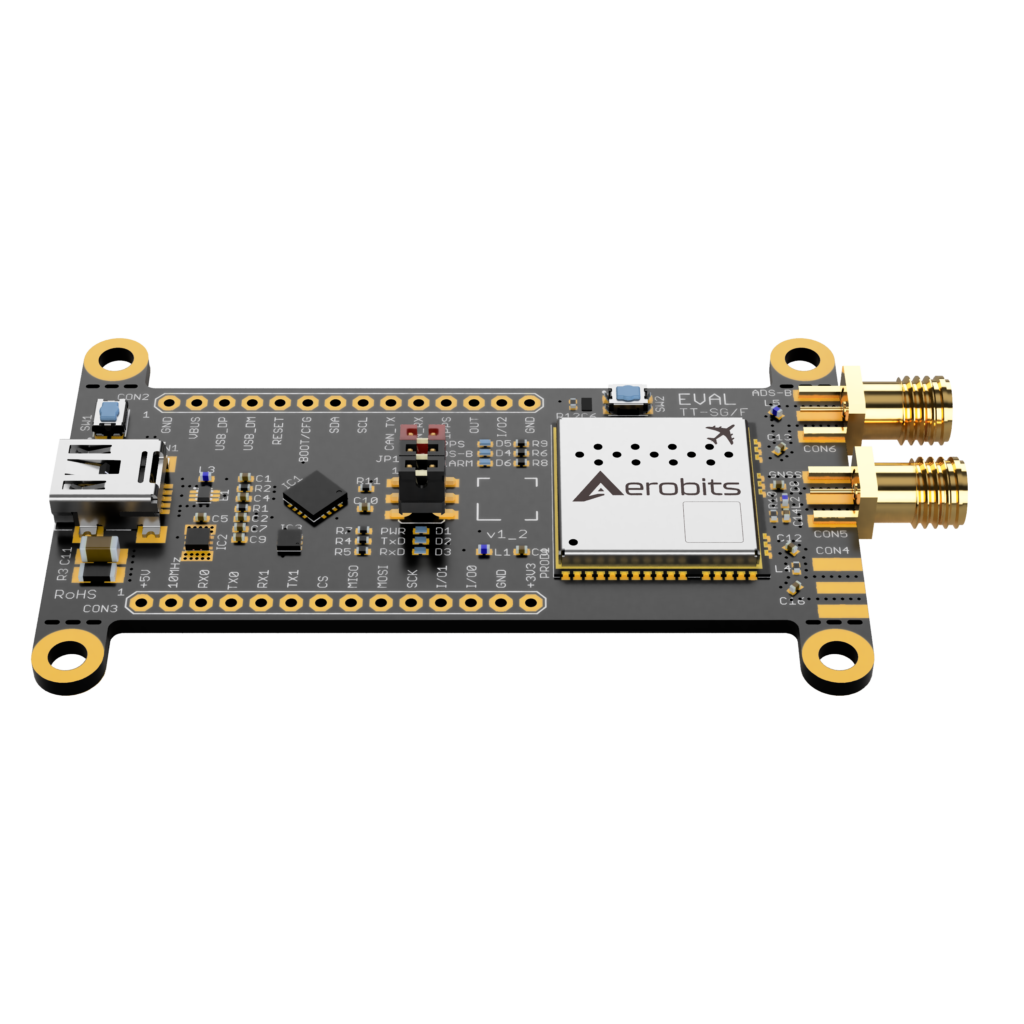

The evaluation kit provides a quick introduction to the TTSG1 module. It is a high quality 1090MHz band receiver with an integrated ADSB (Automatic Dependent Surveillance Broadcast) decoder, conforming to MOPSs specified in TSOC199. EVALTTSG1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping. The software allows simple configuration of the module and data visualization in variousmodes, from raw data, through tabular and 3D views.

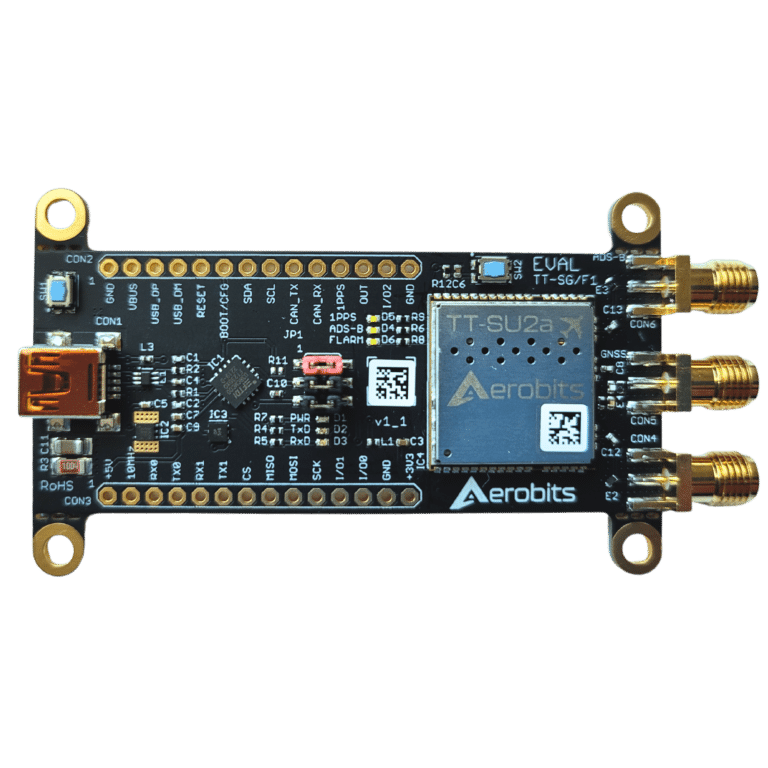

The evaluation kit provides a quick introduction to the TT-SU2 module. It is a high-quality 1090 MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPSs specified in TSO-C199. The TT-SU2 module also contains an internal GNSS module (Ublox), to utilize concurrent reception of up to three GNSS systems (GPS / Galileo together with BeiDou or GLONASS). Other key feature is implemented UAT (Universal Access Transceivers) 978 MHz band receiver which supports multiple broadcast services, including flight information services (FIS-B) and traffic information services (TIS-B), in addition to automatic dependent surveillance—broadcast (ADS-B).
| Product Info |
EVAL-TT-SC1 |
EVAL-TT-SC1-EXT |
EVAL-TT-MC1 |
EVAL-TT-SF1 |
EVAL-TT-SG1 |
EVAL-TT-SU2 |
|---|---|---|---|---|---|---|
| Price | 199.00 € | 299.00 € | 349.00 € | 449.00 € | 349.00 € | 449.00 € |
| Weight | 25 g | 25 g | 25 g | 25 g | 25 g | 25 g |
| Dimensions | 60.5 × 41 mm | 60.5 × 41 mm | 66 × 41 mm | 70 × 43 mm | 70 × 43 mm | 70 × 43 mm |
| ADS-B in | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| ADS-B (in/out) | ✗ | ✗ | ✗ | ✗ | - | - |
| FLARM in/out | ✗ | ✗ | ✗ | ✓ | ✗ | - |
| MODE A/C/S | ✗ | ✓ | ✓ | ✓ | ✓ | ✓ |
| BUILD-IN GNSS | ✗ | ✗ | ✗ | ✓ | ✓ | ✓ |
| Build-in pressure sensor | ✗ | ✗ | ✗ | ✗ | - | - |
| USB CONECTOR | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Timestamp | ✗ | ✓ | ✓ | ✓ | ✓ | - |
| Power supply internal | ✗ | ✗ | ✗ | ✗ | - | - |
| UAT | ✗ | ✗ | ✗ | ✗ | - | - |
| LTE | ✗ | ✗ | ✗ | ✗ | - | - |
| Typ | - | - | - | a, b | - | - |
