Omni-directional Ground Station BLE

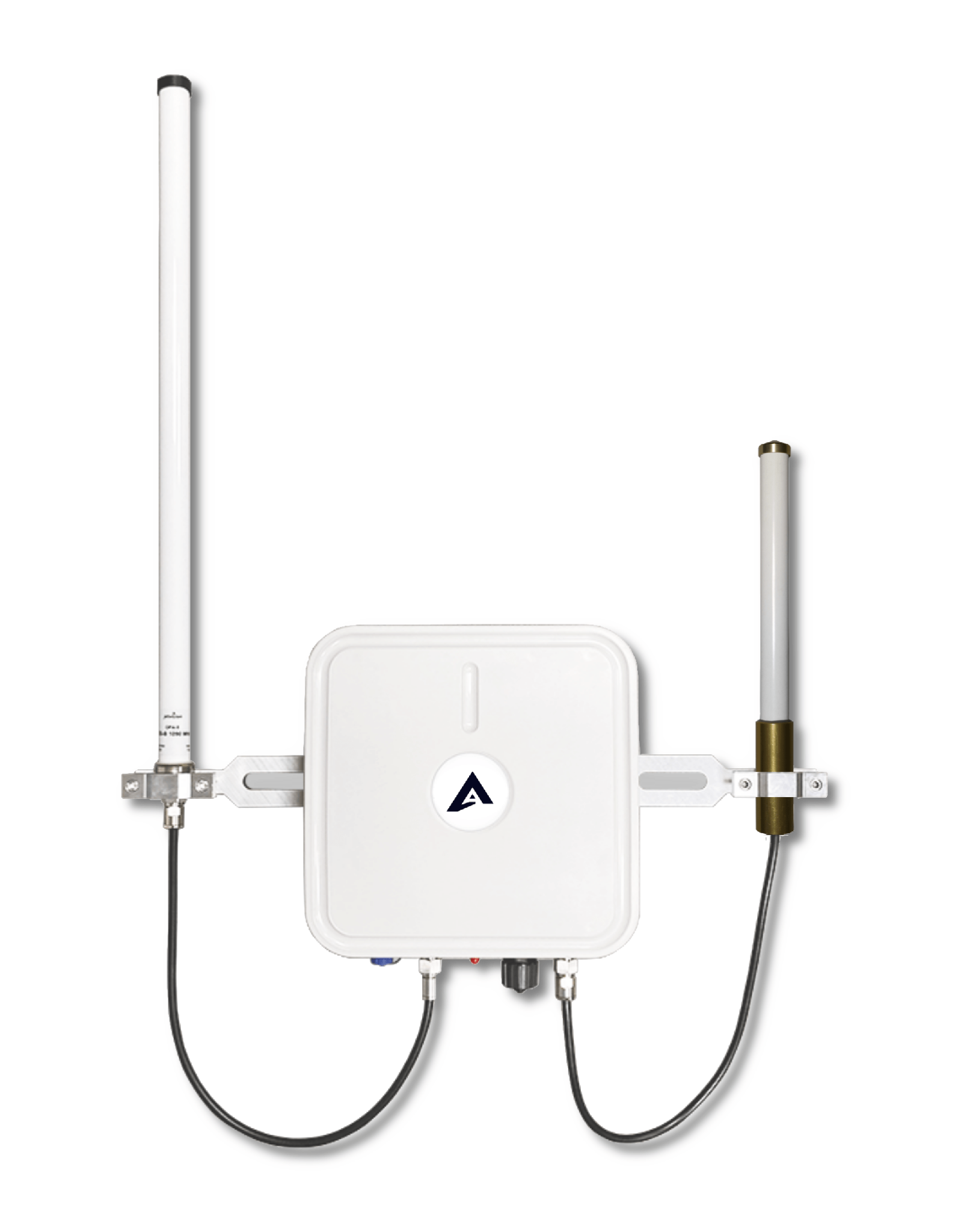

  • Omni-directional Ground Station BLE (OGS BLE) station is an ADS-B and BLE/Wi-Fi Remote ID omnidirectional receiver station with a multi-constellation GNSS sensor to provide the best accuracy.
  • LTE connectivity, a simple setup of the MQTT broker, allows usage in all LTE/4G rich environments without the need for additional cabling to send data. It has been designed to allow quick and easy assembly enclosed in an IP67 case for high weather condition resistance. The device comes with all necessary cables and antennas for straightforward installation.
  • Data can be used with your server (the user gets full data access) There is no obligation to send data to foreign servers, the user always retains data.
  • Air traffic data is also available via API and can be integrated with third-party software and applications, for example using the MQTT protocol.
  • It is a perfect solution for permanent installation in open areas for constant airspace monitoring and conducting VLOS/BVLOS operation where safety is critical.

Product status:

Featured:

Application:

See beyond

Basic Electrical specification:

Parameter DescriptionTyp.Unit
First Band ADS­-B1090MHz
Second BandBLE/Wi-Fi2400MHz
Sensitivity (ADS­-B) -90dBm
Sensitivity (BLE) -105dBm
Integrated GNSS Multi­-GNSS for precise time stamp
LTE Cat. 1 Data transport layer (global bands)
Dimensions 17 x 17 x 10cm
Weight0.5 kg (Module without cables and antennas)
2.5 kg (With cables, arm and antennas)

0.5
2.5

kg
Power consumption 1.5W

Downloads:

Version 2

1
NameSize
FW_HOD_V2_3_50_0_0H.aff

Download Copy Link 405.03 KB 2024-02-07 7 February 2024 2024-04-16 16 April 2024
405.03 KB
FW_HOD_V2_3_42_0_0H.aff

Download Copy Link 388.97 KB 2023-05-04 4 May 2023 2024-02-06 6 February 2024
388.97 KB
FW_HOD_V2_3_32_0_0H.aff

Download Copy Link 364.87 KB 2023-02-28 28 February 2023 2023-01-16 16 January 2023
364.87 KB

3

2d247fec3e

Version 3

1
NameSize
FW_HOD_v3_3_50_0_0H.aff

Download Copy Link 532.07 KB 2024-02-07 7 February 2024 2024-04-16 16 April 2024
532.07 KB
FW_HOD_v3_3_42_0_0H.aff

Download Copy Link 517.01 KB 2023-05-04 4 May 2023 2024-02-07 7 February 2024
517.01 KB
FW_HOD_v3_3_32_0_0H.aff

Download Copy Link 493.92 KB 2023-02-28 28 February 2023 2023-01-16 16 January 2023
493.92 KB

6

2d247fec3e

1
NameSize
GI_OGS_BLE_Datasheet_23ob-v1_1_0.pdf GI_OGS_BLE_Datasheet_23ob-v1.1.0.pdf

Open Download Copy Link 4.31 MB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
4.31 MB

7

2d247fec3e

Windows software

1
NameSize
Micro_ADSB_App-v1_24_1_win_setup.zip Micro_ADSB_App-v1.24.1_win_setup.zip

Download Copy Link 11.05 MB 2024-06-14 14 June 2024 2024-06-14 14 June 2024
11.05 MB
Micro_ADSB_App-v1_24_0_win_setup.zip Micro_ADSB_App-v1.24.0_win_setup.zip

Download Copy Link 11.05 MB 2023-08-29 29 August 2023 2023-08-29 29 August 2023
11.05 MB
Micro_ADSB_App-v1_23_3_win_setup.zip Micro_ADSB_App-v1.23.3_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
11.05 MB
Micro_ADSB_App-v1_23_1_win_setup.zip Micro_ADSB_App-v1.23.1_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
11.05 MB

11

2d247fec3e

User guide

1
NameSize
SOFT_MicroADSB_Datasheet_01m-v1_1_0.pdf SOFT_MicroADSB_Datasheet_01m-v1.1.0.pdf

Open Download Copy Link 648.59 KB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
648.59 KB

12

2d247fec3e



Windows software

1
NameSize
PlaneMap_v0_6_21_win_installer.zip

Download Copy Link 86.98 MB 2024-06-04 4 June 2024 2024-06-04 4 June 2024
86.98 MB
PlaneMap_v0_6_20_win_installer.zip

Download Copy Link 86.96 MB 2024-05-09 9 May 2024 2024-05-09 9 May 2024
86.96 MB
PlaneMap_v0_6_19_win_installer.zip

Download Copy Link 86.98 MB 2024-05-06 6 May 2024 2024-05-06 6 May 2024
86.98 MB
PlaneMap_v0_6_18_win_installer.zip

Download Copy Link 86.97 MB 2024-04-25 25 April 2024 2024-04-25 25 April 2024
86.97 MB
PlaneMap_v0_6_17_win_installer.zip

Download Copy Link 86.97 MB 2024-04-22 22 April 2024 2024-04-22 22 April 2024
86.97 MB
PlaneMap_v0_6_12_win_installer.zip PlaneMap_v0.6.12_win_installer.zip

Download Copy Link 86.97 MB 2024-04-18 18 April 2024 2024-04-18 18 April 2024
86.97 MB
PlaneMap_v0_6_11_win_installer.zip PlaneMap_v0.6.11_win_installer.zip

Download Copy Link 86.97 MB 2024-04-15 15 April 2024 2024-04-15 15 April 2024
86.97 MB
PlaneMap_v0_6_10_win_installer.zip PlaneMap_v0.6.10_win_installer.zip

Download Copy Link 86.94 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
86.94 MB
PlaneMap_v0_6_08_win_installer.zip PlaneMap_v0.6.08_win_installer.zip

Download Copy Link 87 MB 2023-08-23 23 August 2023 2023-01-26 26 January 2023
87 MB

21

2d247fec3e

Linux software

1
NameSize
PlaneMap_v0_6_21_lin_installer.zip

Download Copy Link 86.77 MB 2024-06-04 4 June 2024 2024-06-04 4 June 2024
86.77 MB
PlaneMap_v0_6_20_lin_installer.zip

Download Copy Link 86.77 MB 2024-05-09 9 May 2024 2024-05-09 9 May 2024
86.77 MB
PlaneMap_v0_6_19_lin_installer.zip

Download Copy Link 86.77 MB 2024-05-06 6 May 2024 2024-05-06 6 May 2024
86.77 MB
PlaneMap_v0_6_18_lin_installer.zip

Download Copy Link 86.81 MB 2024-04-25 25 April 2024 2024-04-25 25 April 2024
86.81 MB
PlaneMap_v0_6_17_lin_installer.zip

Download Copy Link 86.81 MB 2024-04-22 22 April 2024 2024-04-22 22 April 2024
86.81 MB
PlaneMap_v0_6_12_lin_installer.zip PlaneMap_v0.6.12_lin_installer.zip

Download Copy Link 86.81 MB 2024-04-18 18 April 2024 2024-04-18 18 April 2024
86.81 MB
PlaneMap_v0_6_11_lin_installer.zip PlaneMap_v0.6.11_lin_installer.zip

Download Copy Link 86.81 MB 2024-04-15 15 April 2024 2024-04-15 15 April 2024
86.81 MB
PlaneMap_v0_6_10_lin_installer.zip PlaneMap_v0.6.10_lin_installer.zip

Download Copy Link 86.83 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
86.83 MB
PlaneMap_v0_6_08_lin_installer.zip PlaneMap_v0.6.08_lin_installer.zip

Download Copy Link 86.84 MB 2023-08-23 23 August 2023 2023-01-26 26 January 2023
86.84 MB

30

2d247fec3e

User guide

1
NameSize
SOFT_PlaneMap_Datasheet_01p-v1_1_0.pdf SOFT_PlaneMap_Datasheet_01p-v1.1.0.pdf

Open Download Copy Link 1.83 MB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
1.83 MB

31

2d247fec3e

Windows

1
NameSize
UpdaterApp_v1_6_6_win.zip UpdaterApp_v1.6.6_win.zip

Download Copy Link 558.49 KB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
558.49 KB
UpdaterApp_v1_6_4_win.zip UpdaterApp_v1.6.4_win.zip

Download Copy Link 558.49 KB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
558.49 KB
UpdaterApp_v1_6_3_win.zip UpdaterApp_v1.6.3_win.zip

Download Copy Link 558.5 KB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
558.5 KB

34

2d247fec3e

Linux x86

1
NameSize
UpdaterApp_v1_6_6_lin_x86.zip UpdaterApp_v1.6.6_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
1.02 MB
UpdaterApp_v1_6_4_lin_x86.zip UpdaterApp_v1.6.4_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
1.02 MB
UpdaterApp_v1_6_3_lin_x86.zip UpdaterApp_v1.6.3_lin_x86.zip

Download Copy Link 1.02 MB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
1.02 MB

37

2d247fec3e

Linux ARM

1
NameSize
UpdaterApp_v1_6_6_lin_arm.zip UpdaterApp_v1.6.6_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-08-01 1 August 2023
2.79 MB
UpdaterApp_v1_6_4_lin_arm.zip UpdaterApp_v1.6.4_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-07-26 26 July 2023
2.79 MB
UpdaterApp_v1_6_3_lin_arm.zip UpdaterApp_v1.6.3_lin_arm.zip

Download Copy Link 2.79 MB 2023-08-23 23 August 2023 2023-07-25 25 July 2023
2.79 MB

40

2d247fec3e

User guide

1
NameSize
SOFT_Updater_Datasheet_01u-v1_1_26.pdf SOFT_Updater_Datasheet_01u-v1.1.26.pdf

Open Download Copy Link 837.89 KB 2023-10-02 2 October 2023 2023-10-02 2 October 2023
837.89 KB
