OEM - low level modules

TT-SF2

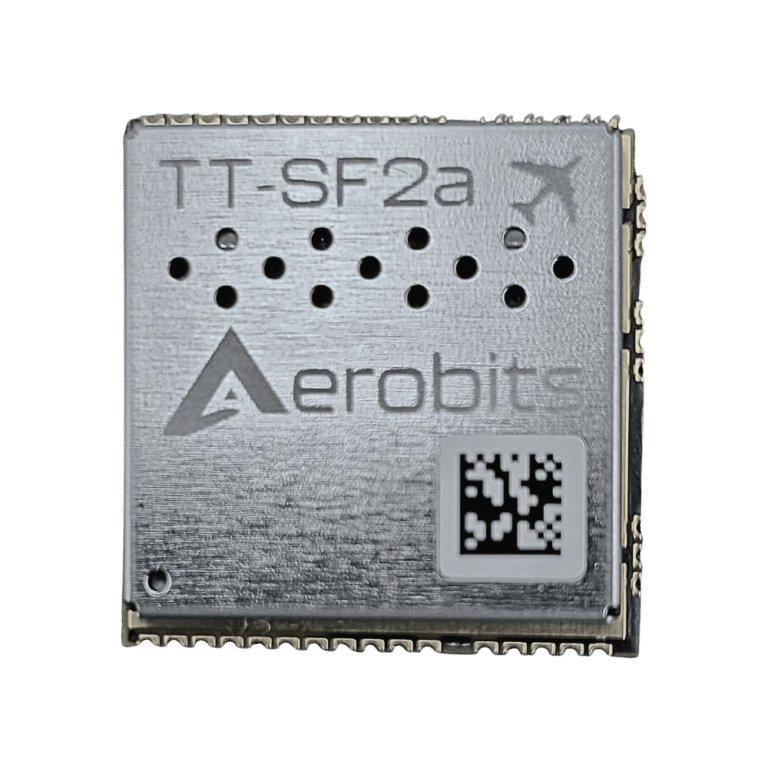

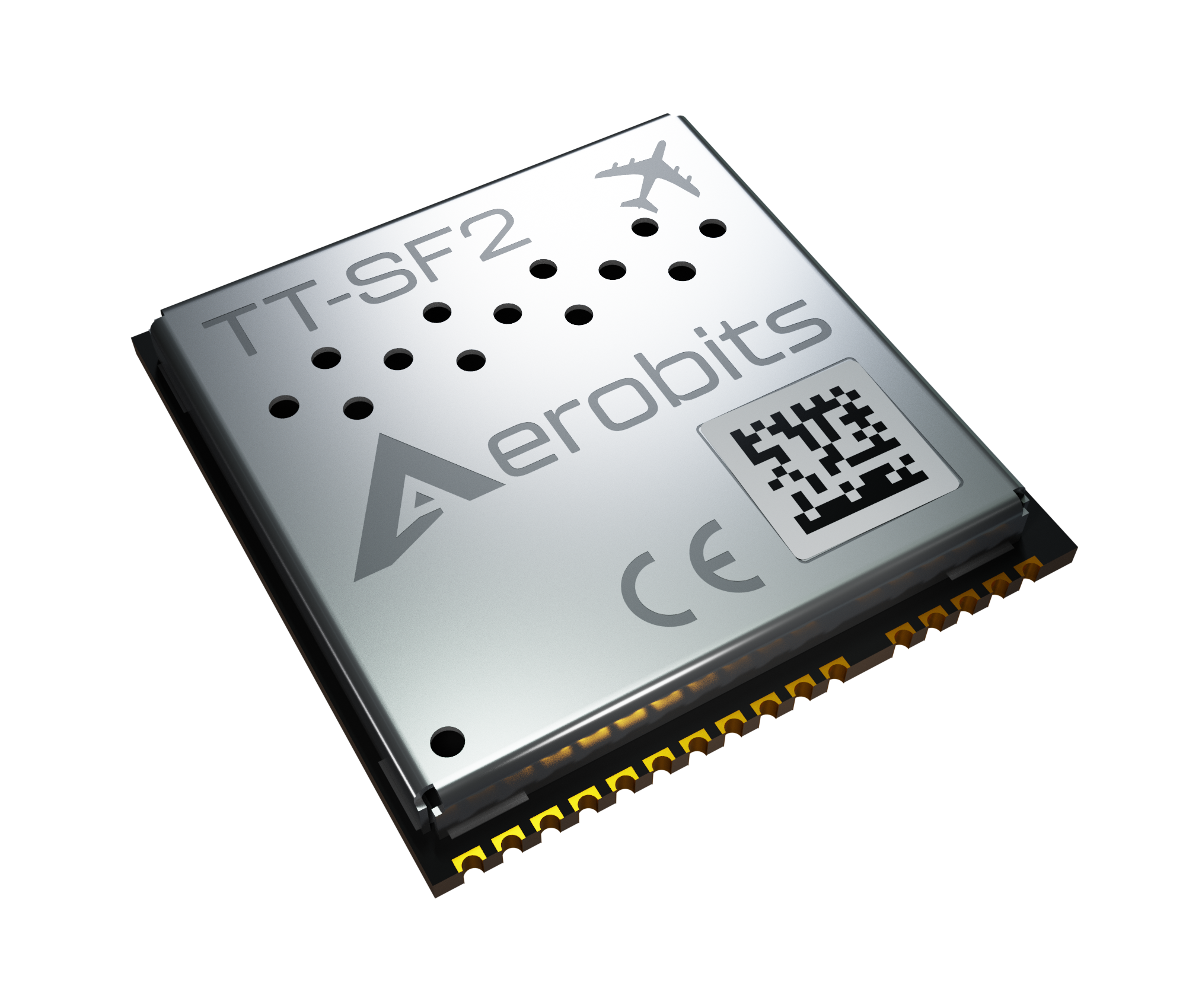

OEM ADS-B receiver TT-SF2

ADS-B, GNSS, UAT
  • TT-SF2 is a high quality and low price OEM ADS-B/GNSS receiver/FLARM transceiver series operating at 1090MHz and region dependent FLARM frequency. It is based on the proven FPGA-In-The-Loop™ technology, which is a unique combination of a pingle and FPGA. The patented solution allows high-speed RF data processing with significantly reduced number of electronic components.

  • Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications.

Notice: price includes a life-long FLARM license.

Product status:

Want to evaluate TT-SF2?

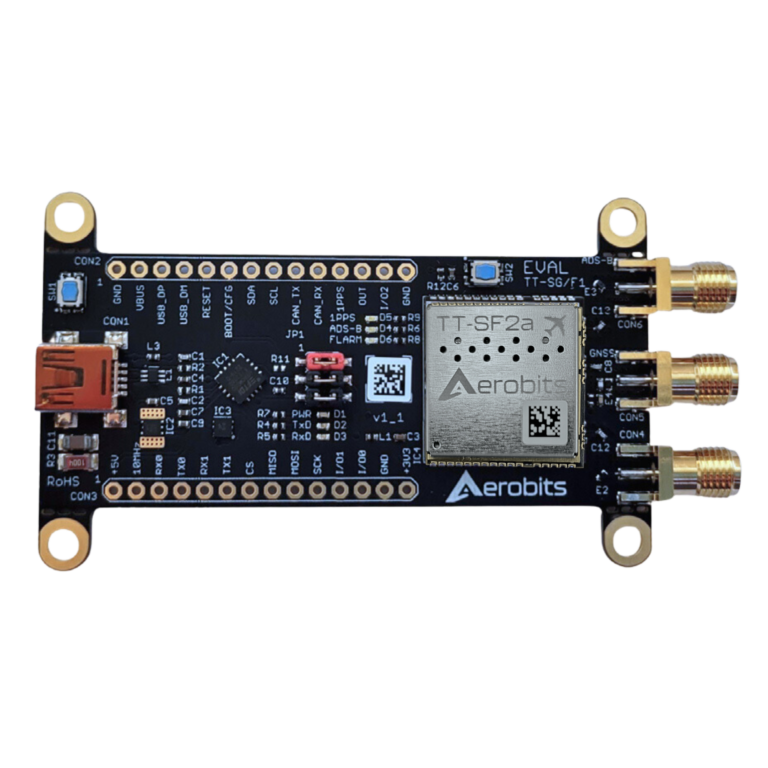

The evaluation kit provides a quick introduction to the TT­-SF2 module.

See beyond

Features:

Application:

Basic Electrical specification:

ParameterDescriptionTyp.Unit.
Carrier frequency ADS-B1090MHz
 FLARM 868 (region dependent)
RX sensitivity ADS-B approx. -­85

dBm

 FLARM approx. ­-103
 GNSS approx. ­-167­
TX power FLARM  max. +14dBm
Power supply VCC min. 2.7 (recommended 3.0) –  max.3.6DCV
Current consumption  130mA
Dimensions  19×18.5 (a) 19×22.5 (b)mm
