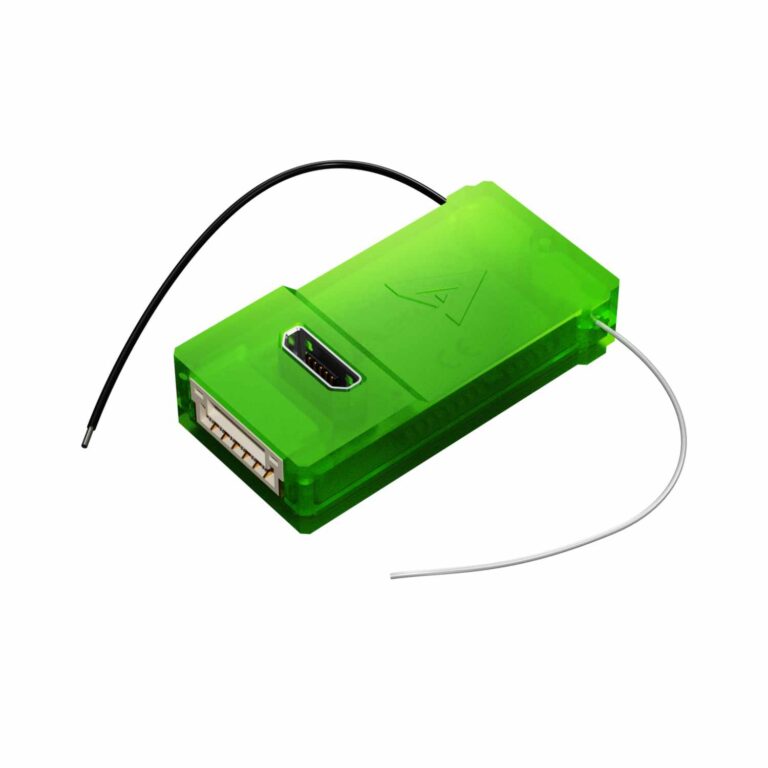

idME PRO (Remote ID) – FCC Certificate

The most advanced Remote Identification device

WI-FI and BLE technology

Our Remote ID module is based on the following technologies:

  • Wi-Fi (supported NAN and Beacon frames)
  • BT (supported BLE, and legacy frames)
  • GNSS (GPS, Glonass, BeiDou, QZSS, Galileo)

Using the BLE and WI-FI broadcast technology, our Remote ID (RID) device provides surveillance and drone operator identification capability based on any modern mobile device such as a smartphone or tablet.

Why Remote ID from Aerobits?

  • idME PRO (UAS Remote Identification) can be easily connected to Pixhawk controller via JST connector
  • Sniffer functionality – receive via Bluetooth and WI-FI signal form other RID devices
  • Increase of broadcast power to +20dBm Wi-Fi and +18dBm BLE
  • Automatic power adjustment according to the country of use
    supports the newest MAVLink protocol, with Open Drone Id Messages
  • Extended configuration options allow choosing a transmission technology
  • Its small outline and low power consumption allow to be used in ultra-lightweight drones (20mA)
  • AT commands provide feasibility to configure broadcast messages, such as drone identification number, type of aircraft, etc. Additional authentication mechanisms are also available.

Notice:

Basic technical information



ParameterDescriptionTyp.Unit
FrequencyBluetooth2.402 – 2.480GHz
Max. outputMaximum output power BLE+18dBm
FrequencyWi-Fi2.4 – 2.485GHz
Max. outputMaximum output power WI-FI+20dBm
ESD protectionAll connectors
Interface baudConfiguraton or MAVLink115200bps
Main connectorSM06B-GHS-TB(LF)(SN)
Antenna connector2x RF-IPX125-1G-AU
Temperature rangeOperating temperature-30 to +85°C
Storage temperatureOptimal storage temperature-5 to +40°C
Dimension 32.0 x 16.7 x 7.5mm
Weight (with antenna) 5grams



Compliant with the required standards

Compliant with the newest version of ASTM and ASD_STAN documents

Features:

Application:

Compliant with ASTM and ASD-STAN
Increase of broadcast power
Be visible in the airspace, let the safety level rise
Integrated GNSS
Wi-Fi / BLE antenna
Power adjusted based on geolocation
Extended configuration options
Small outline and low power consumption
Constant power source from UAS
Data transmitted via WI-FI/BLE up to 1,5 km
Easy integration with MAVLink protocol
Possibility to use any mobile application

Keep your flying with trusted solutions

Basic Electrical specification:





ParameterDescription

Value

Unit

TX Bluetooth

Bluetooth+8dBm
TX WI-FI +20dBm
Power supply

5

V
Current consumptionaverage

 20

mA
