Aero Pro

Aero Pro

ADS-­B receiver

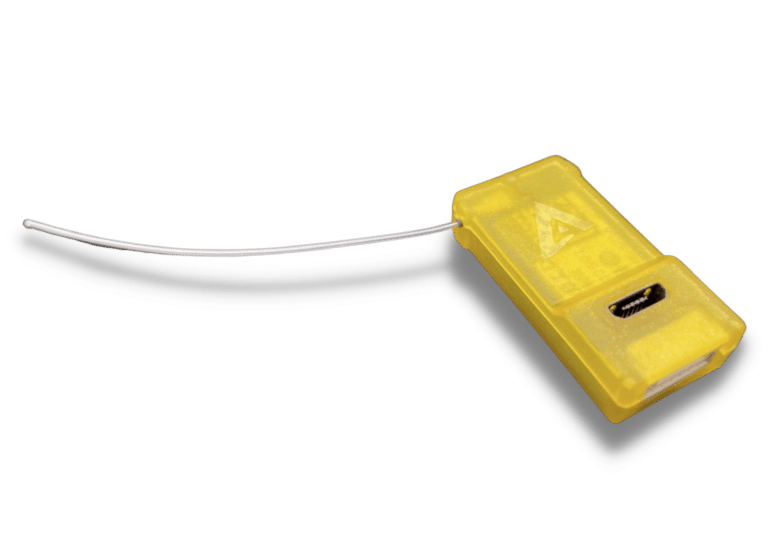

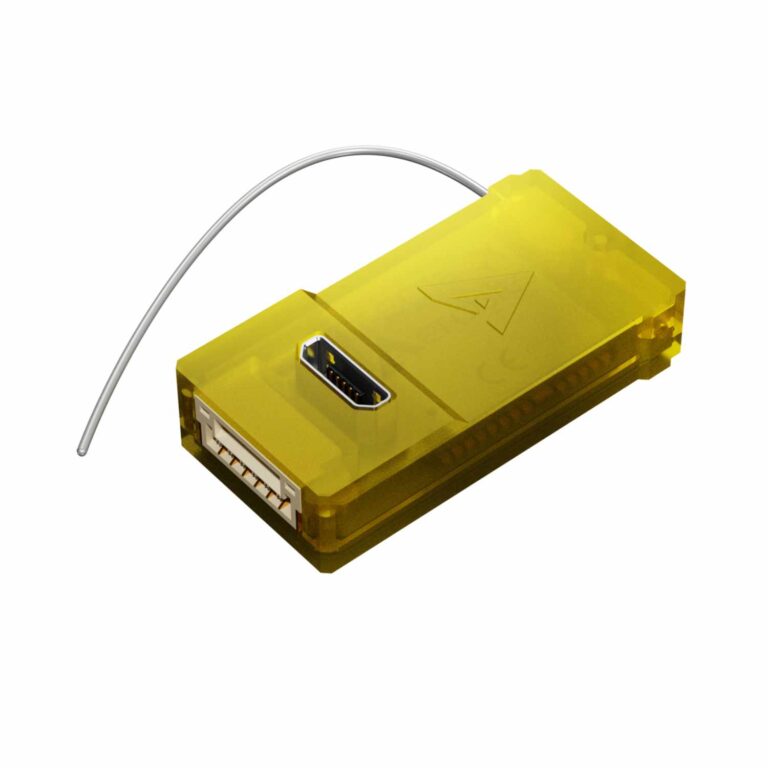

  • Aero Pro belongs to the class of the smallest ADS-B receivers on the market and has been developed for civil and commercial Unmanned Aircraft Systems. It is especially dedicated to UAS controllers supporting the MAVLink protocol.

  • Aero Pro operates on 1090MHz and allows tracking air traffic (equipped with ADS-B technology) in the vicinity of 100 km from UAS. The goal is to ensure a safe separation between manned and unmanned aircraft. Aero opens the way to the implementation of the Detect and Avoid algorithms, supporting the integration of UAS into the airspace.

Product status:

ETSI certification for Aero Pro

Aero/Aero Pro are based on the TT-SC1 series a high performance OEM Mode A/C/S and ADS-B receivers operating at 1090MHz. The patented FPGA-ln-The_Loop™ technology allows high-speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications.

Features:

Application:

See beyond

Basic Electrical specification:

ParameterDescriptionTyp.Unit
Carrier frequency 1090MHz
RX sensitivityOperation at 50Ω-80dBm
Weight with antenna

4.0

grams
MAVlinkYes
Dimensions

31.5 x 15.5 x 7.3

mm

Downloads:

1
NameSizeDate
FW_SC1_2_48_3_0D.aff

Download Copy Link 184.11 KB 2023-07-28 28 July 2023 2023-08-28 28 August 2023
184.11 KB28 August 2023
FW_SC1_2_38_0_0D.aff

Download Copy Link 192.14 KB 2023-05-10 10 May 2023 2023-07-28 28 July 2023
192.14 KB28 July 2023
FW_SC1_2_13_1_1D.aff

Download Copy Link 178.28 KB 2023-02-28 28 February 2023 2022-05-16 16 May 2022
178.28 KB16 May 2022

3

c0d22a5624

1
NameSizeDate
PP_AEROPRO_Datasheet_09a-v1_1_16.pdf PP_AEROPRO_Datasheet_09a-v1.1.16.pdf

Open Download Copy Link 8.85 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
8.85 MB4 August 2023
PP_AEROPRO_Datasheet_09a-v1_1_8.pdf PP_AEROPRO_Datasheet_09a-v1.1.8.pdf

Open Download Copy Link 8.85 MB 2023-08-23 23 August 2023 2023-06-19 19 June 2023
8.85 MB19 June 2023
PP_AEROPRO_Datasheet_09a-v1_1_0.pdf PP_AEROPRO_Datasheet_09a-v1.1.0.pdf

Open Download Copy Link 8.85 MB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
8.85 MB15 May 2023

6

c0d22a5624

1
NameSizeDate
Aero-Pro.step Aero Pro.step

Download Copy Link 8.75 MB 2023-05-25 25 May 2023 2023-05-25 25 May 2023
8.75 MB25 May 2023

7

c0d22a5624



Windows software

1
NameSizeDate
Micro_ADSB_App-v1_24_0_win_setup.zip Micro_ADSB_App-v1.24.0_win_setup.zip

Download Copy Link 11.05 MB 2023-08-29 29 August 2023 2023-08-29 29 August 2023
11.05 MB29 August 2023
Micro_ADSB_App-v1_23_3_win_setup.zip Micro_ADSB_App-v1.23.3_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
11.05 MB4 August 2023
Micro_ADSB_App-v1_23_1_win_setup.zip Micro_ADSB_App-v1.23.1_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
11.05 MB25 April 2023

10

c0d22a5624

User guide

1
NameSizeDate
SOFT_MicroADSB_Datasheet_01m-v1_1_0.pdf SOFT_MicroADSB_Datasheet_01m-v1.1.0.pdf

Open Download Copy Link 648.59 KB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
648.59 KB15 May 2023
