EVAL-TT-SC1-EXT

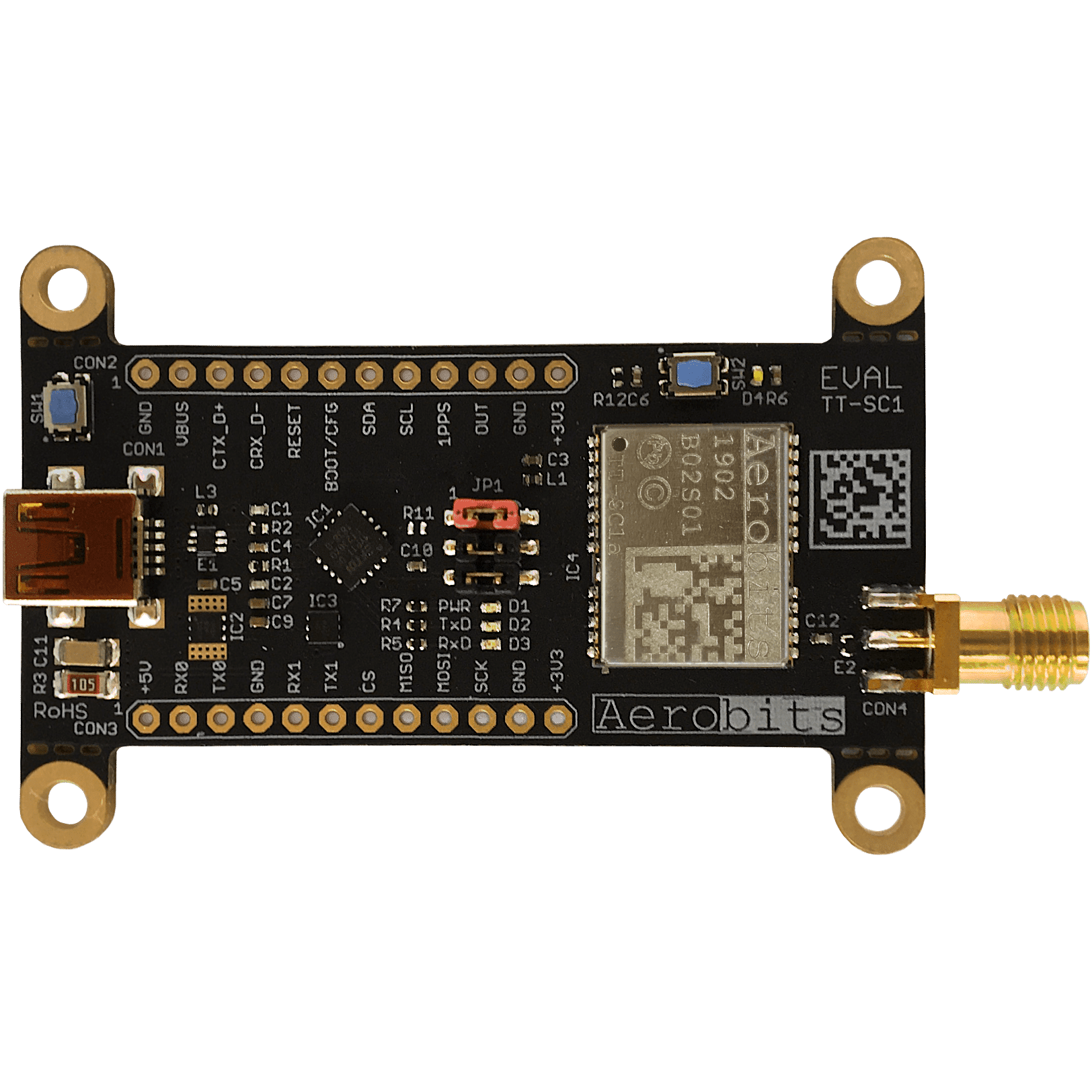

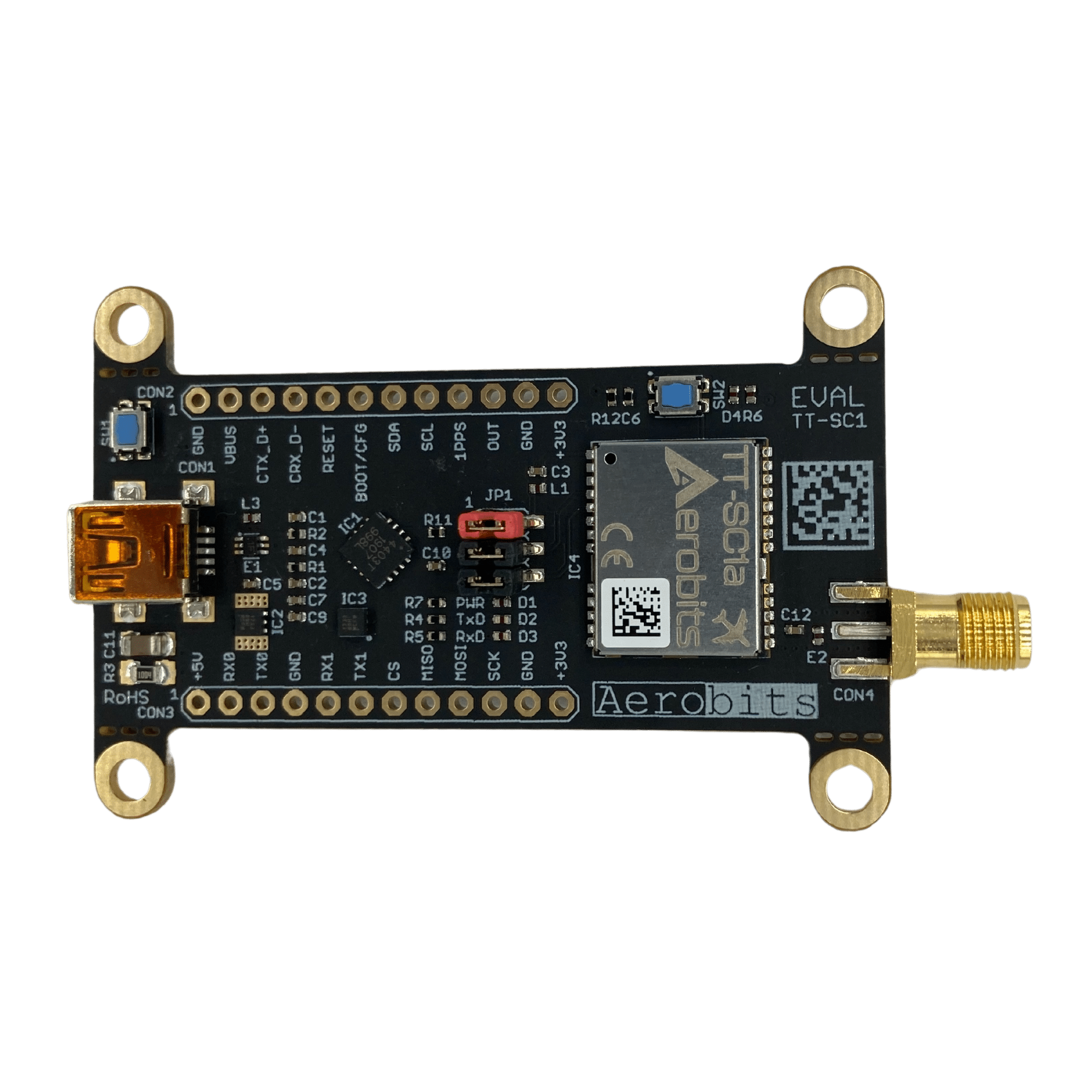

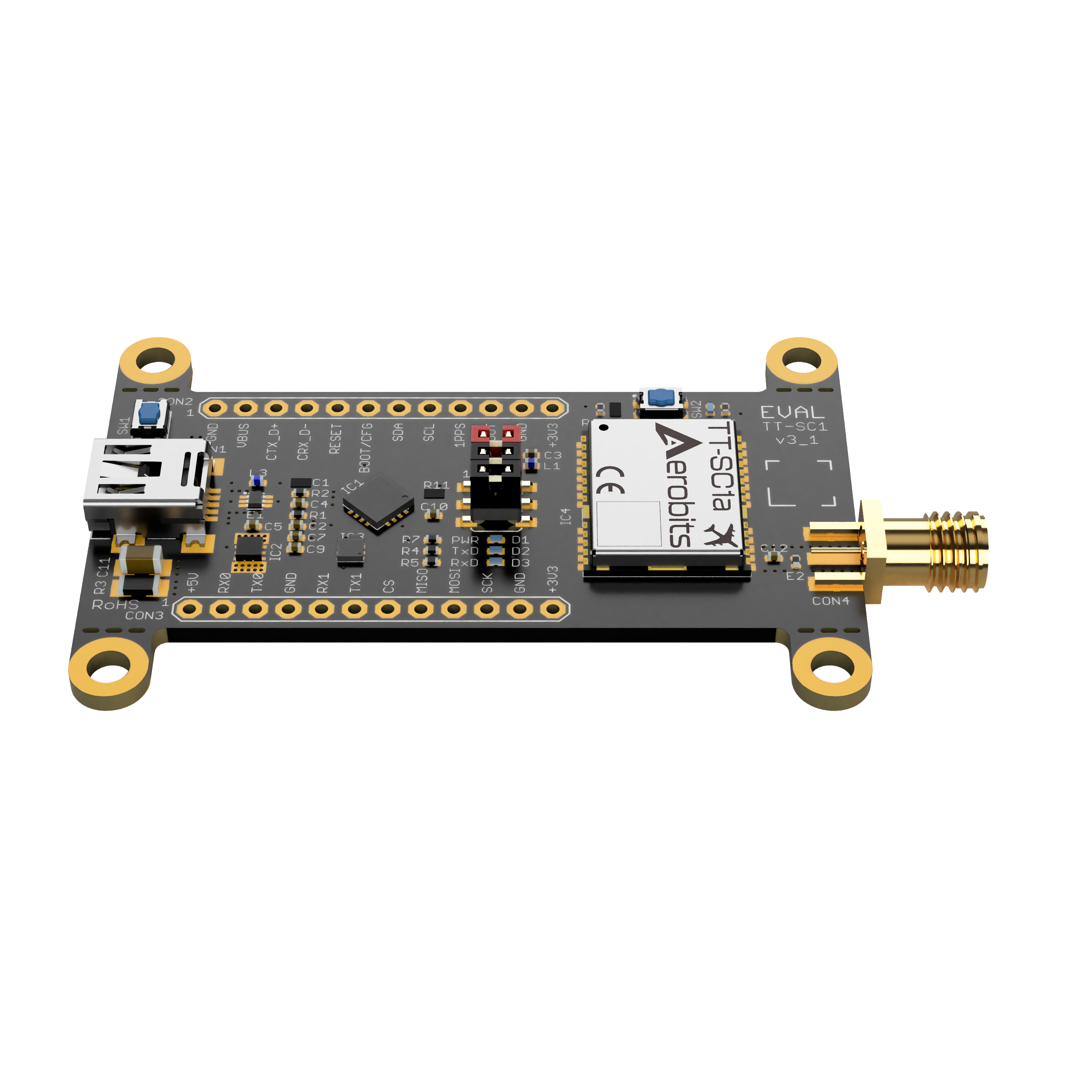

Evaluation board to the TT-SC1-EXT module

  • The evaluation kit provides a quick introduction to the TT-SC1­-EXT module series. It is a high-quality 1090MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPSs specified in TSO-C199. It brings everything you need to run your SC1-EXT module and quickly get started with the development of your MODE A/C/S and ADS-B system. For more advanced users, this module also provides a precise timestamp for enabling multi-lateration implementations.

  • It is an excellent option for those who want to familiarize themselves with the module from the software side and later use the dedicated hardware and software solutions created by Aerobits. The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views.

  • Each set is also equipped with appropriate additional elements such as an antenna, USB cable, etc.

Product status:

Featured:

Kit contents:

Basic Electrical specification:

Parameter Description Typ. Unit.
Carrier frequency   1090 MHz
RX sensitivity Operation at 50 Ω -80 dBm
Power supply USB or external 5V or 3.3V 5V or 3.3V DCV
Current consumption   80 mA
Dimensions   60.5 x 41 mm
