Plug&Play – for UAS

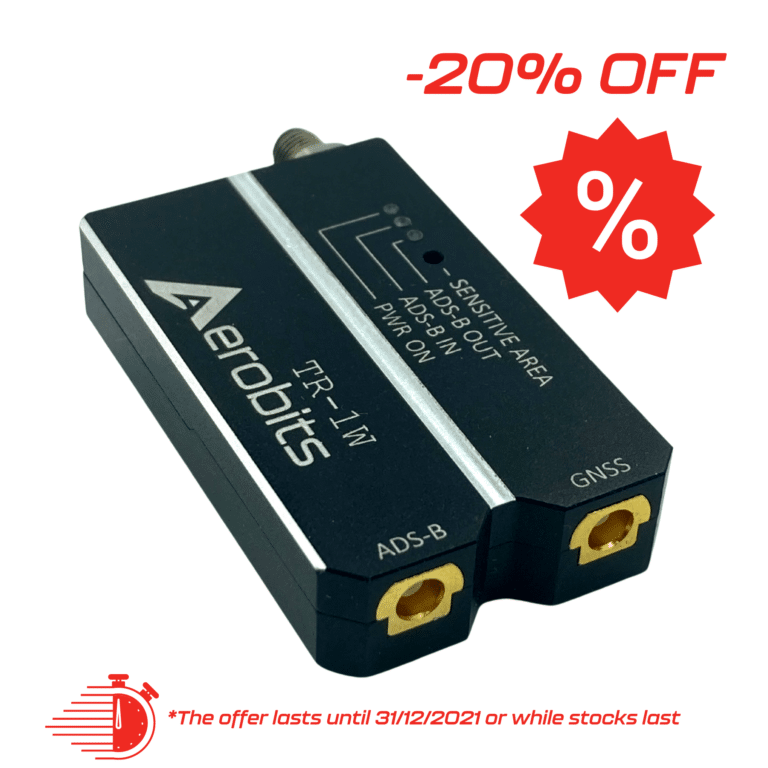

TR-1W

TR-1W belongs to the class of the smallest ADS-B transceivers on the market and has been developed for civil and commercial Unmanned Aircraft Systems. The device operates on 1090MHz band and allows receiving and transmit ADS-B data with 1 Watt output power.

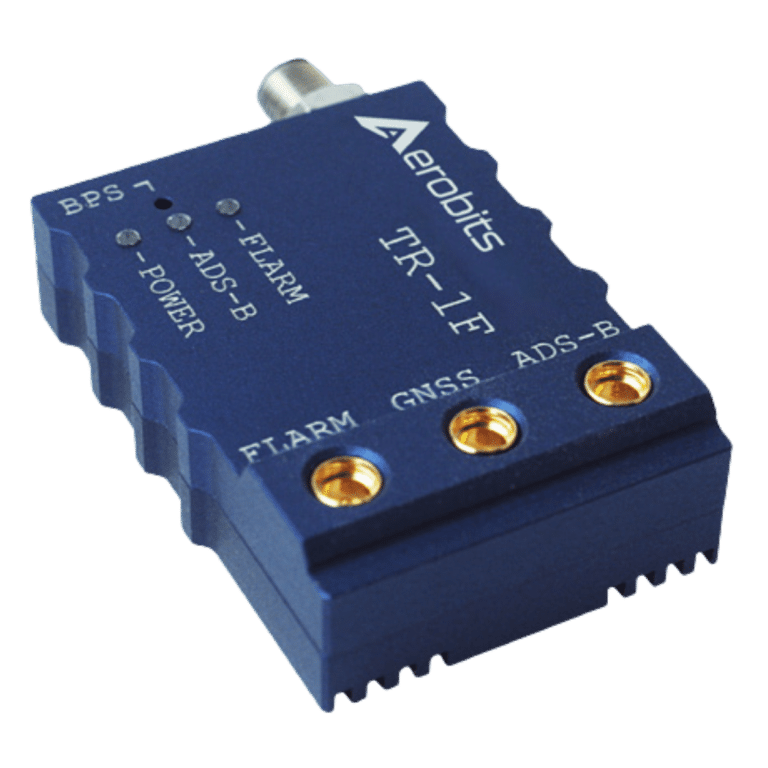

TR-1F

TR-1F

The TR-1F device is a low-power, dual frequency ADS-B and FLARM transceiver perfect for use with small UAS for safe integration into airspace as well as UTM/U-Space applications. This solution has integrated barometric pressure sensor and GNSS which makes it a stand alone device that only requires power source to operate.

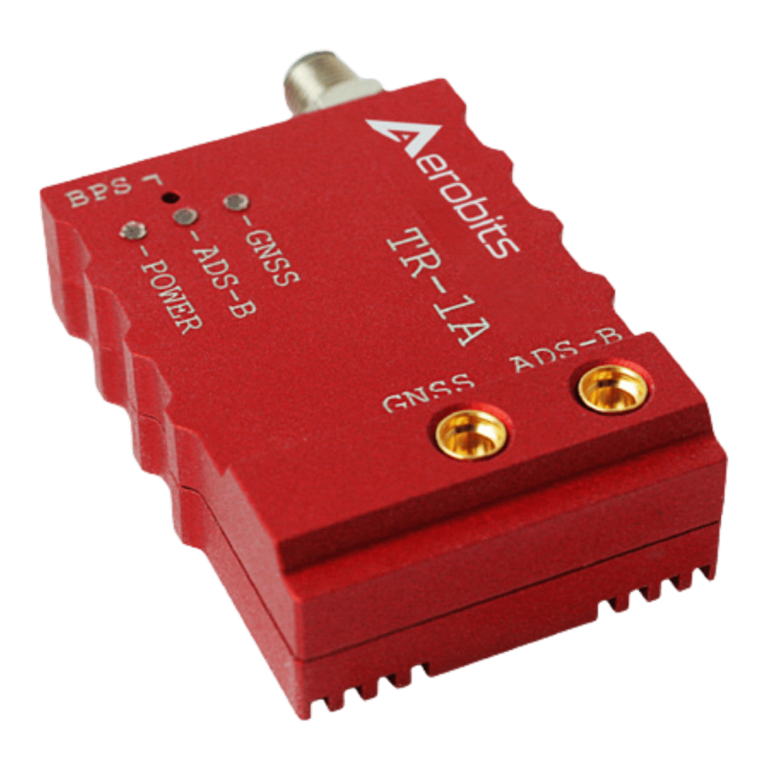

TR1-A

TR-1A

TR-1A belongs to the second generation of the smallest ADS-B transceivers on market and has been developed for civil and commercial Unmanned Aircraft Systems. (weight and size reduced by 33%). The device operates on 1090MHz and allows receiving and transmit ADS-B data with defined 0.25, 0.5 or 1 Watt output power.

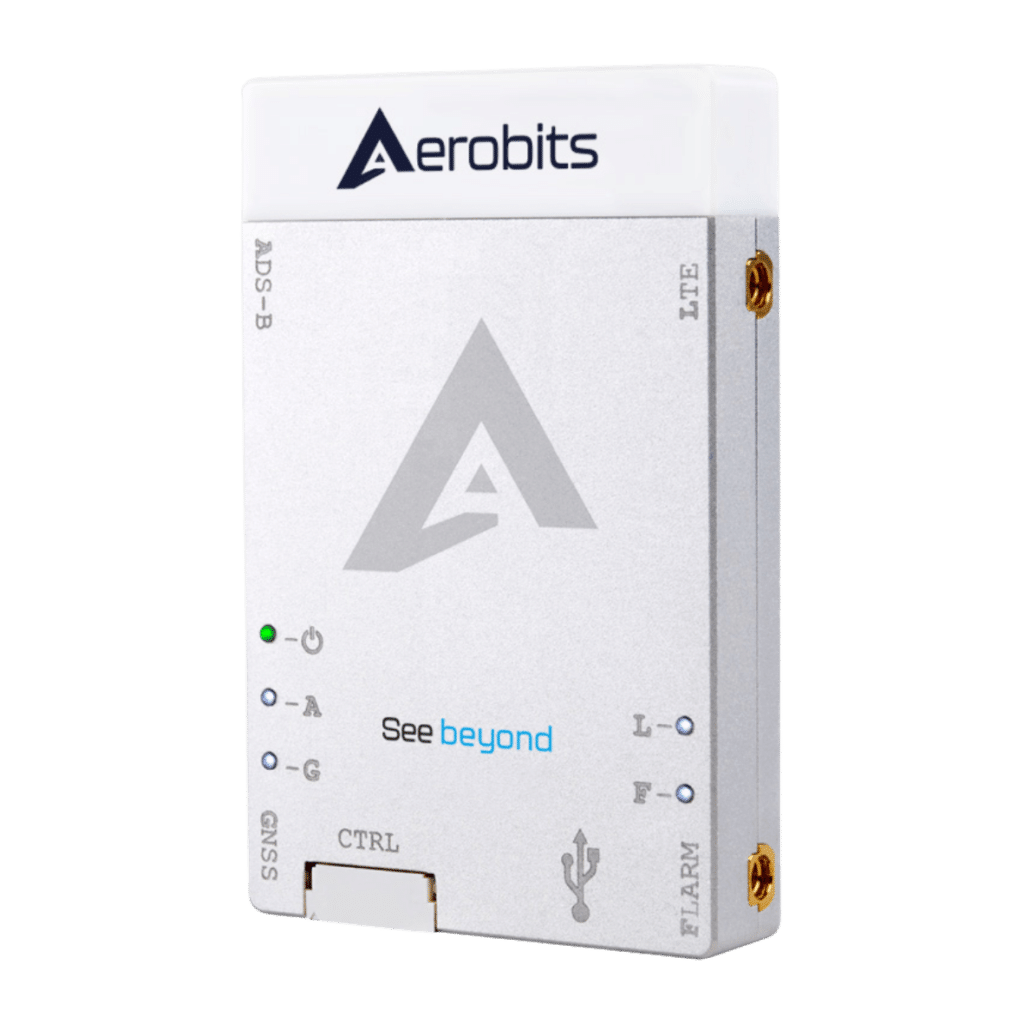

HOD

The HOD

The HOD (Hook-On-Device) is a result of pursuit for the standardization of the Global UTM system. This highly integrated multi-band transceiver is the most comprehensive UTM/U-Space UAS device for tracking/anti-colision and e-identification on the market. Its LTE connectivity allows integration with any current and future UTM systems.

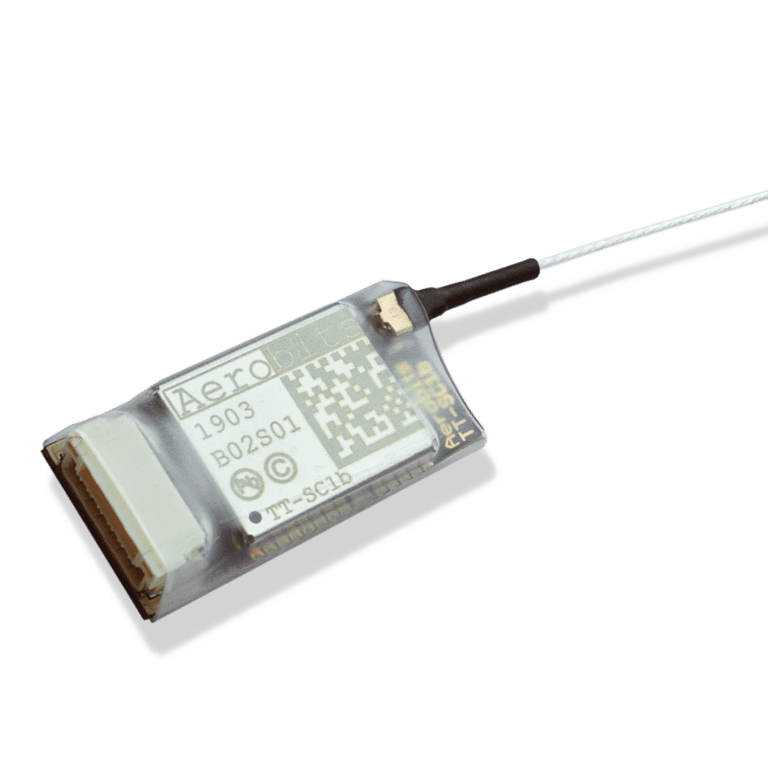

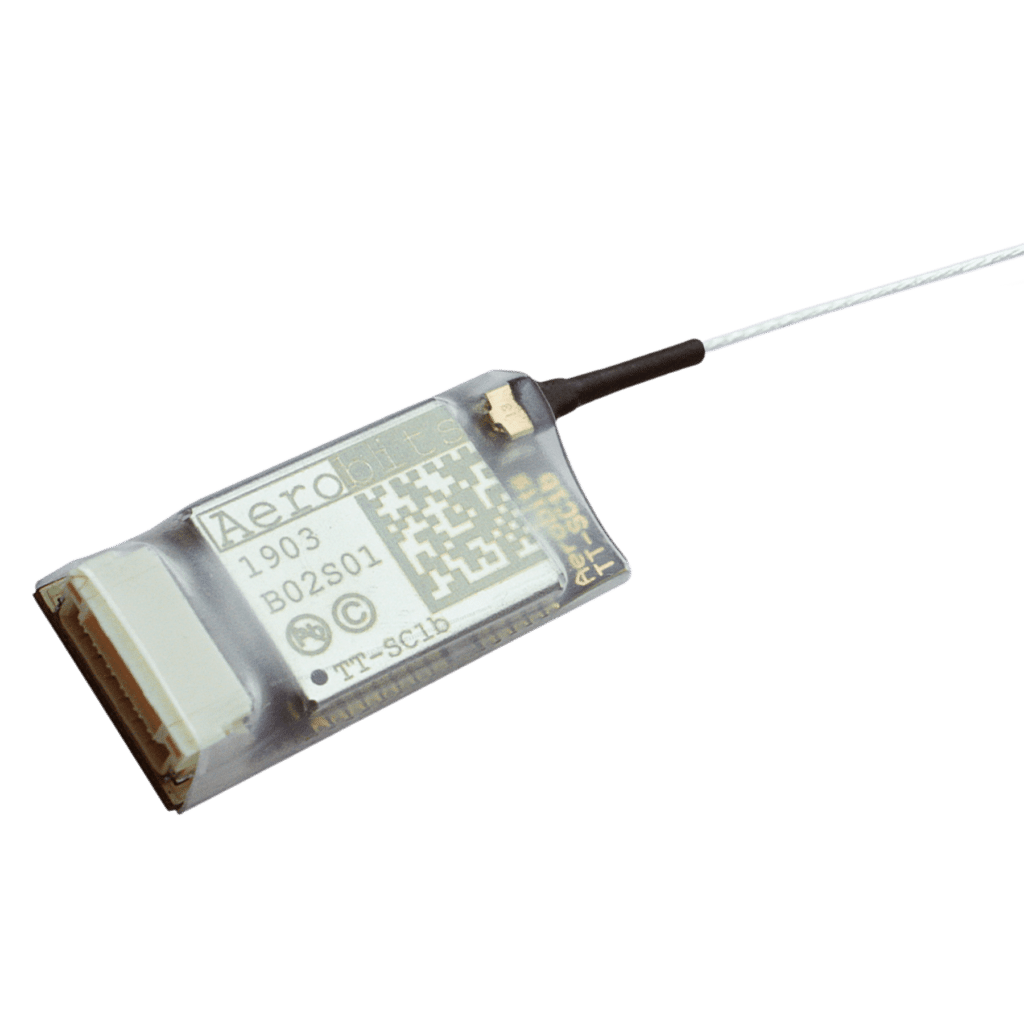

Aero

This is one of our most affordable products for all users of drones who want to receive and decode ADS-B and Mode A/C/S in their machines. It is based on the TT-SC1b module and has a specially adapted antenna. The integration of GNSS technology allows you to mark frames with an accurate timestamp for multilateration purposes. It is possible to connect Dongle LTE/GSM via a USB port.

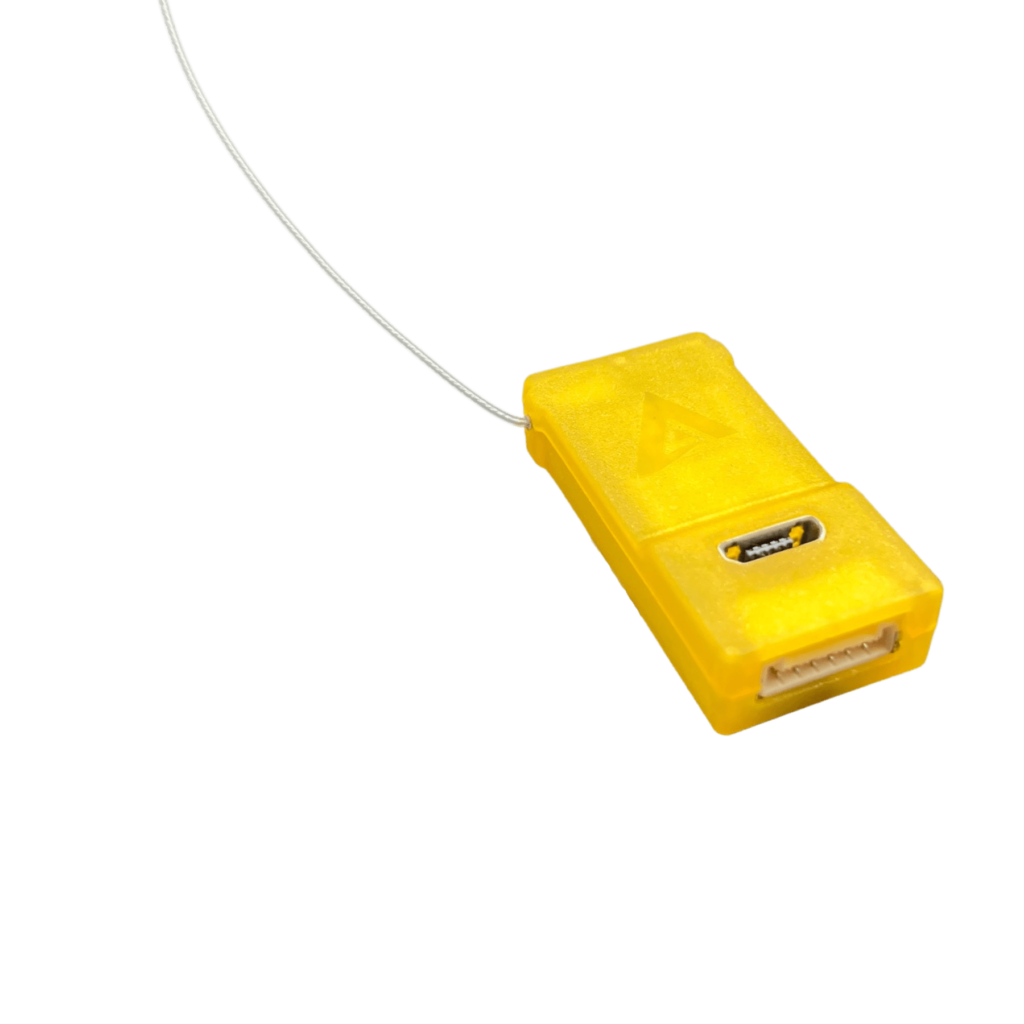

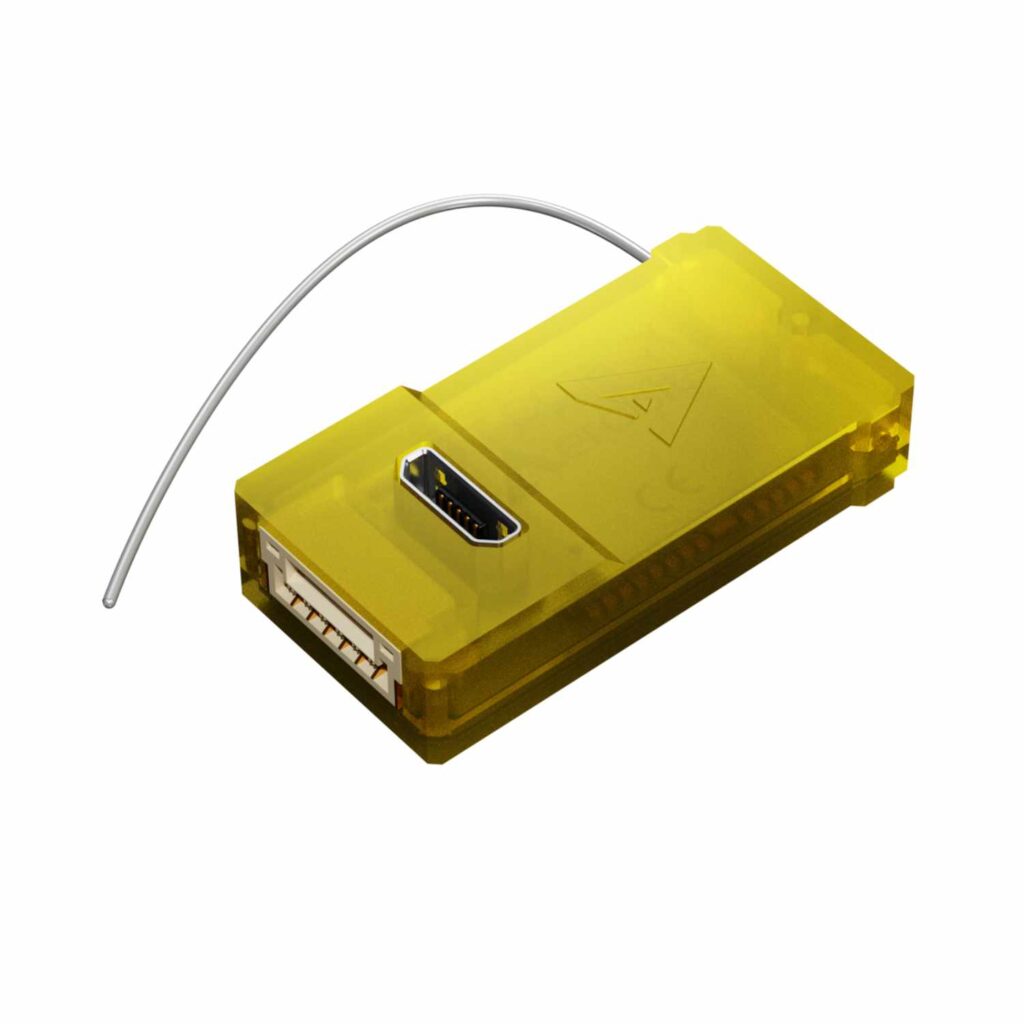

Aero Pro

Aero Pro belongs to the class of the smallest ADS-B receivers on the market and has been developed for civil and commercial Unmanned Aircraft Systems. It is especially dedicated to UAS controllers supporting the MAVLink protocol. Aero Pro operates on 1090MHz and allows tracking air traffic (equipped with ADS-B technology) in the vicinity of 100 km from UAS.

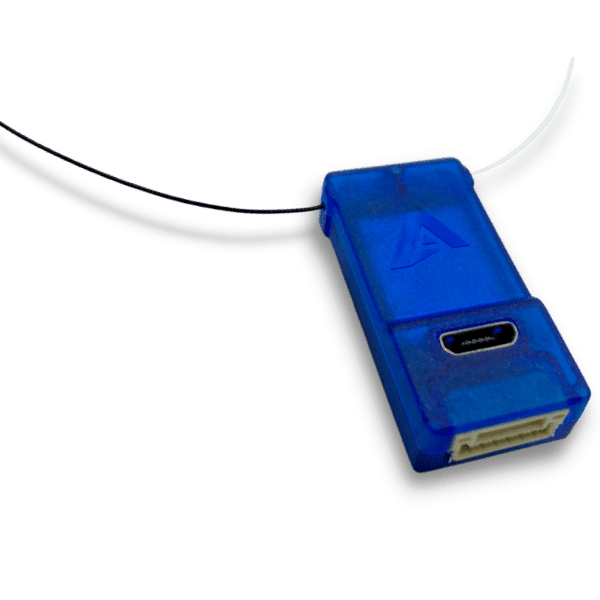

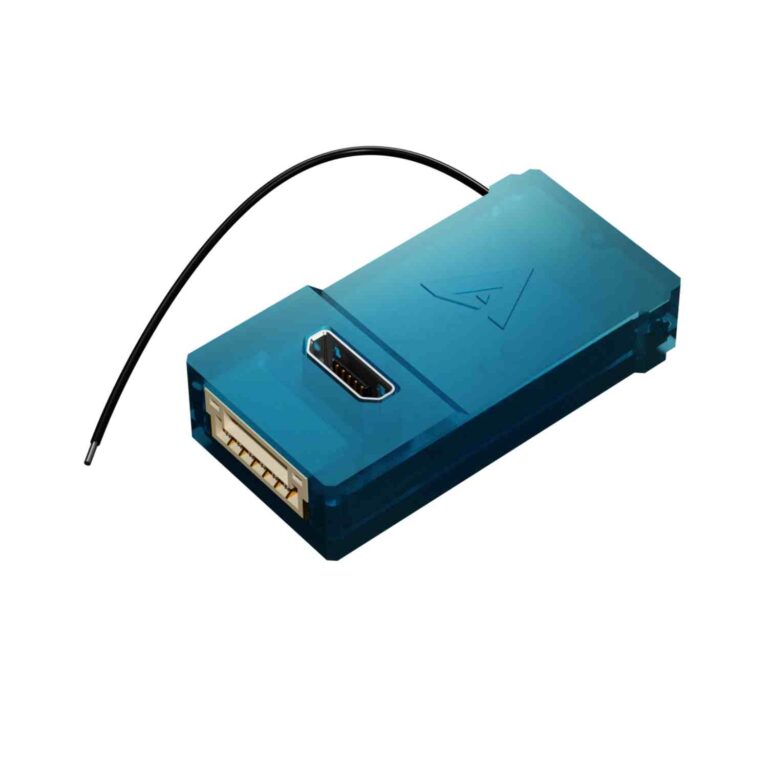

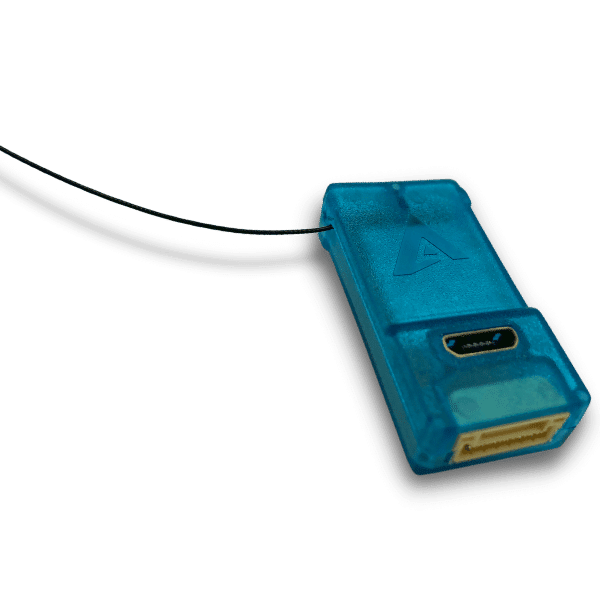

idME

Designed to meet requirements of remote drone identification and localization inASTM/ASD-STAN standard. Using the BLE broadcast technology the deviceprovides surveillance and drone operator identification capability based on anymodern mobile devices such as smartphone or tablet.

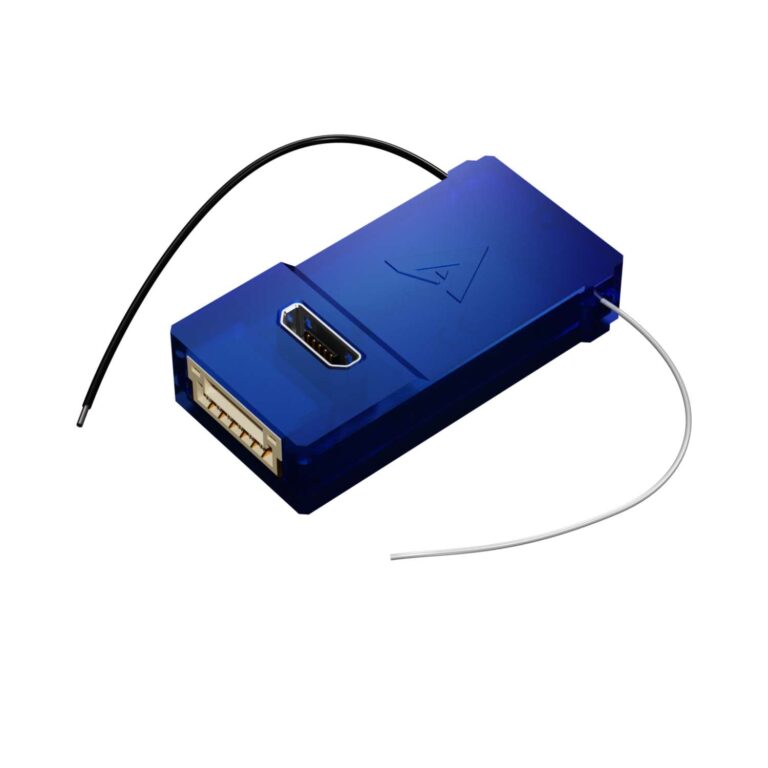

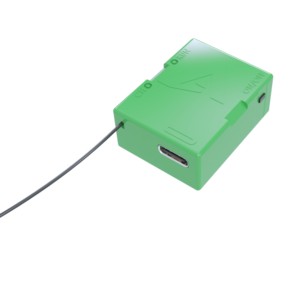

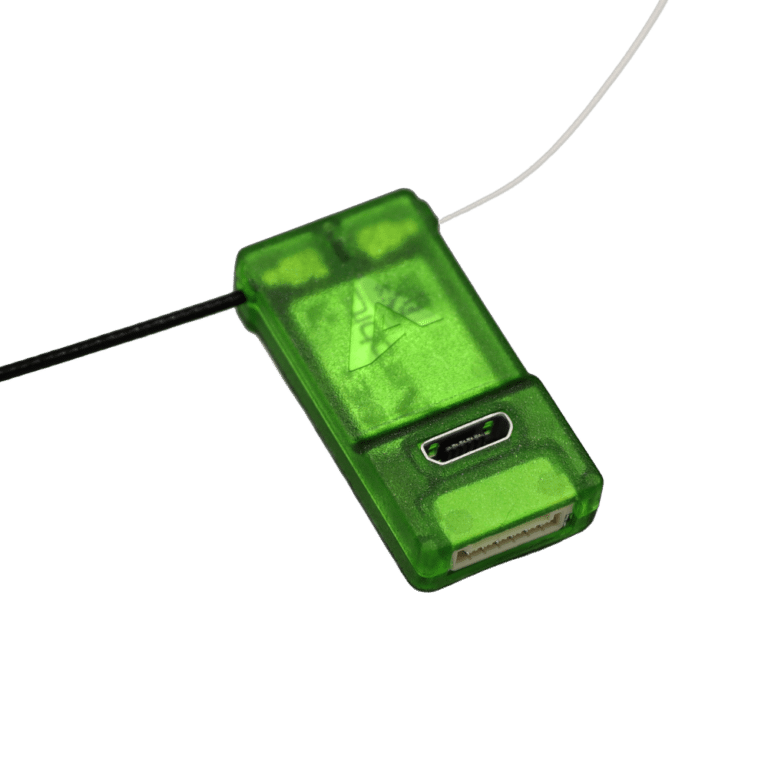

idME+ is designed to meet requirements of remote drone identification and localization in ASTM/ASD-STAN standard. Using the BLE broadcast technology, the device provides surveillance and drone operator identification capability based on any modern mobile devices such as smartphone or tablet.

Compare plug and play products



Product Info

Aero

Aero Pro

Aero Pro

TR-1W

TR1-A

TR-1A

TR-1F

TR-1F

idME (remoteID)

idME+ (remoteID)

HOD

The HOD (Hook-On-Device) for UAS

Price 175.00  199.00  650.00  850.00  1150.00  159.00  189.00  -
Weight 2.8 g 6 g 30 g 14 g 14 g 6 g 6 g 149 g
Dimensions 27 × 14 × 5.5 mm 31.5 × 15.5 × 7.3 mm 45.5 × 28 × 10 mm 35 × 25 × 8.5 mm 35 × 25 × 8.5 mm 31.5 × 15.5 × 7.3 mm 31.5 × 15.5 × 7.3 mm 58 × 38 × 9.5 mm
ADS-B in - -
ADS-B (in/out) - - - -
FLARM in/out - - - -
MODE A/C/S - - -
BUILD-IN GNSS - - -
Build-in pressure sensor - - -
USB CONECTOR - - -
Timestamp - - - -
Power supply internal - - - -
UAT - - - -
LTE - - - -
Sensitivity ads-b (dBm) RX sensitivity For operation at 50Ω -80 RX sensitivity For operation at 50Ω -85 RX sensitivity For operation at 50Ω -80 RX sensitivity For operation at 50Ω -82 RX sensitivity For operation at 50Ω -75 - - RX sensitivity For operation at 50Ω -75
