Ground Infrastructure

Aero RPi Hat

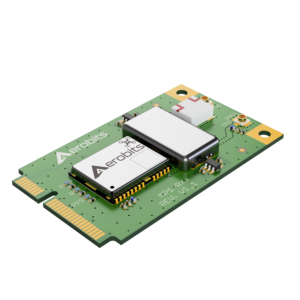

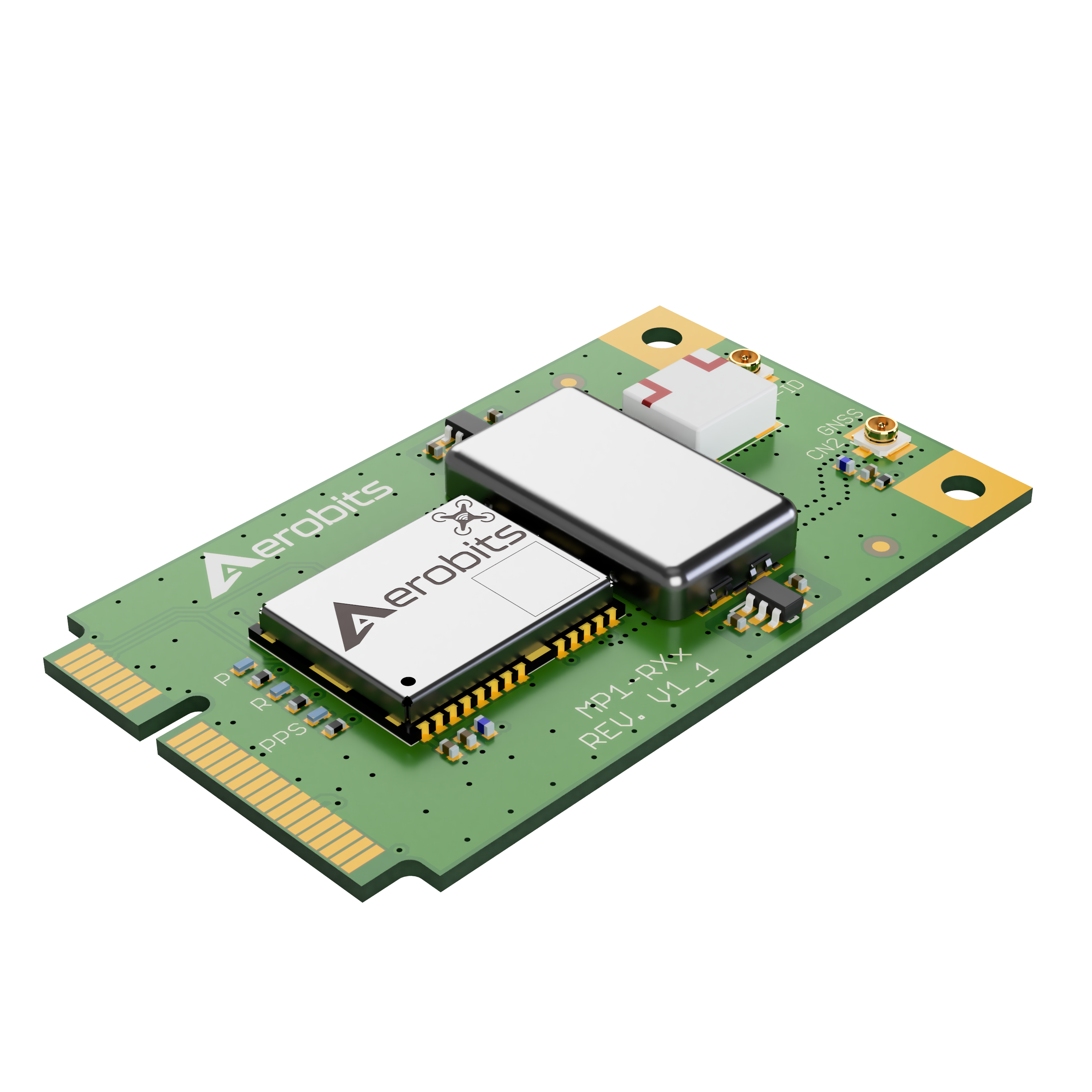

AERO RPI is a simple in use, off the shelves’ solution for ADS-B, Mode A/C and S data aggregation and with the integration of GNSS technology allows you to mark frames with an accurate timestamp for multilateration purposes. Integration of POE (Power-over-Ethernet) technology allows simple operation via just one Ethernet cable and outdoor installation. Data from multiple devices can be easily sent to a central server for further processing. This allows easy creation of ADS-B networks for tracking of manned and unmanned aircraft in line with U-Space/UTM philosophy.

OGS station

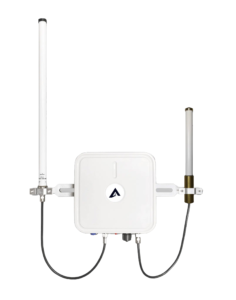

OGS station (Omni-directional Ground Station) is an ADS­-B and FLARM Omni­-directional receiver station with multi­-constellation GNSS sensor to provide the best accuracy. LTE connectivity allows usage in all LTE/3G rich environments without the need for any additional cabling to send data. It has been designed to allow quick and easy assemble enclosed in IP67 case for high weather condition resistance. Device comes with all necessary cables and antennas for straight forward installation. It is a perfect solution for permanent installation in open areas for constant airspace monitoring and conducting VLOS/BVLOS operation where safety is critical.

Sector Antenna

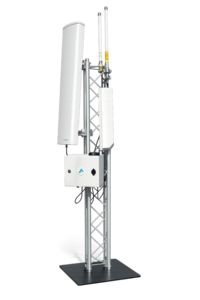

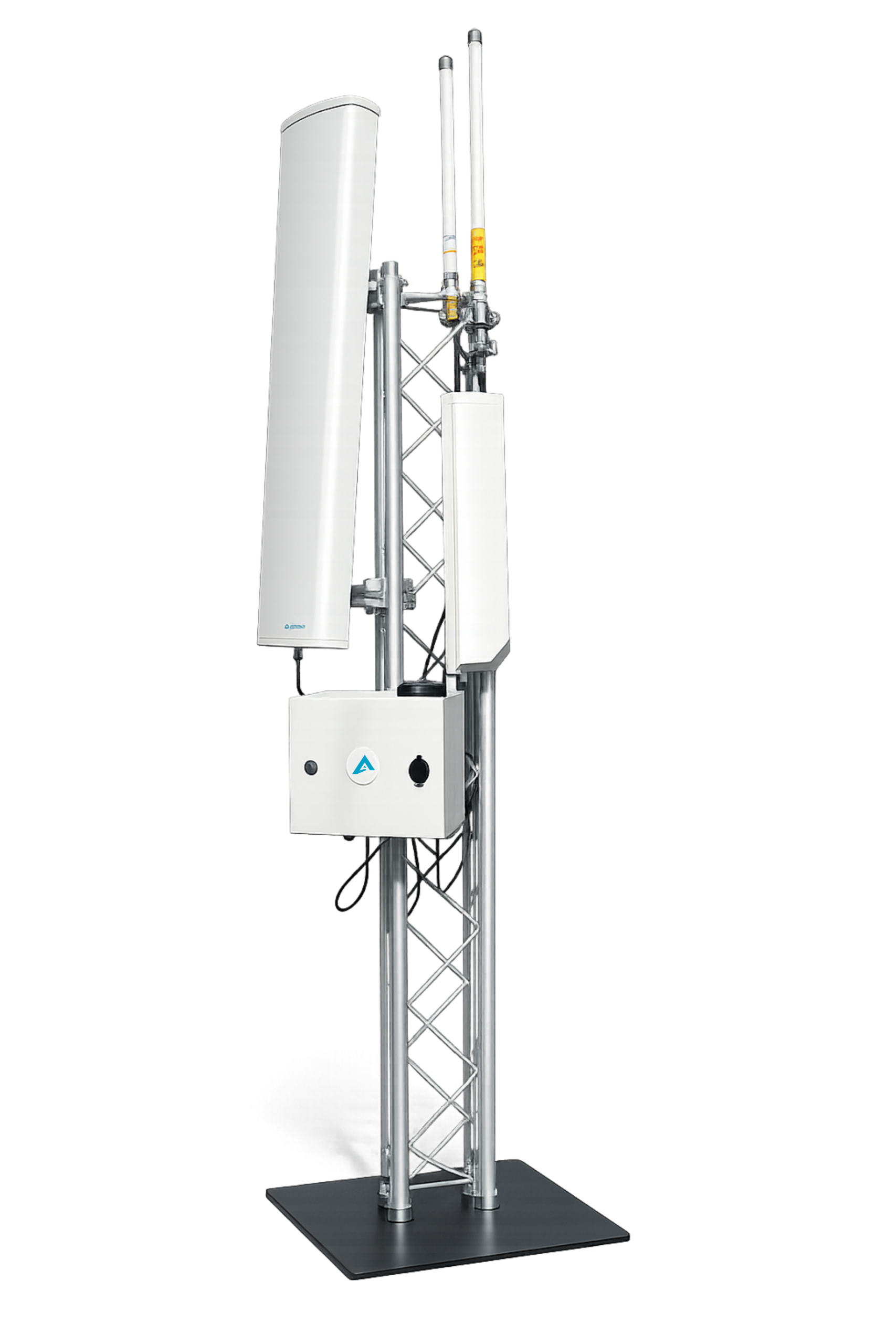

This flagship product offers the best performance for FALRM and ADS-B on the market for a fraction of the price of the professional ground receiver stations. With added capability to send data over LTE this device only requires power supply to operate. Its predominant use case, due to very high sensitivity, is UTM and U-Space where it is required to track and position aircraft in shadowed areas. With simple integration with any UTM system, via a CSV and ASTERIX formatted data, it makes a perfect choice for urban installations.

Mobile Ground Station

The MGS-­01 station combines LTE, GNSS, ADS-­B and FLARM technologies in a very convenient form. It has been designed to allow quick and easy assemble. Packed in a very nice and sturdy case, comes with all necessary cables and antennas for straight forward installation which takes less than 5 minutes. It is a perfect solution if you are conducting many VLOS/BVLOS operation in different places where safety is critical.

Compare ground infrastructure products



Product Info

Aero RPi Hat

Mobile Ground Station

Omni-directional Ground Station

Sector Antenna

Price 550.00  3150.00  2950.00  -
Weight 45 g 500 g 500 g 13000 g
Dimensions 85.6 × 56.5 × 17 mm 13000 × 17500 × 4500 mm 170 × 170 × 100 mm 1290 × 290 × 134 mm
ADS-B in
FLARM in/out
MODE A/C/S
BUILD-IN GNSS
Build-in pressure sensor
USB CONECTOR
Timestamp
Power supply internal
UAT
LTE
View Omni-directional Omni-directional Omni-directional Sector
Sensitivity ads-b (dBm) RX sensitivity For operation at 50Ω -85 -90 -90 -100
Sensitivity FLARM (dBM) RX sensitivity For operation at 50Ω -85 -130 -115 -130
Fixing Mobile Mobile Fixed Fixed
