TT-SG1

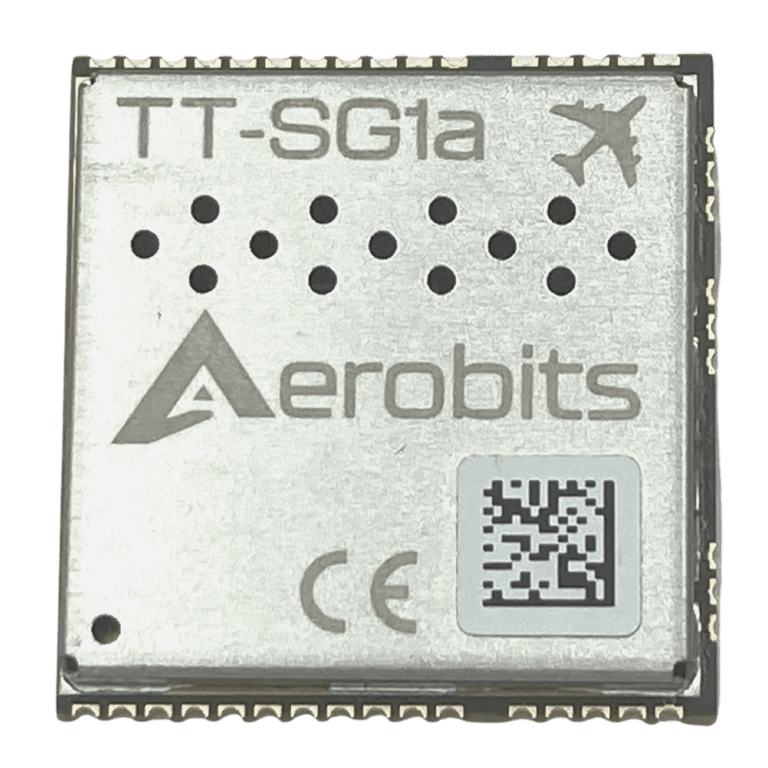

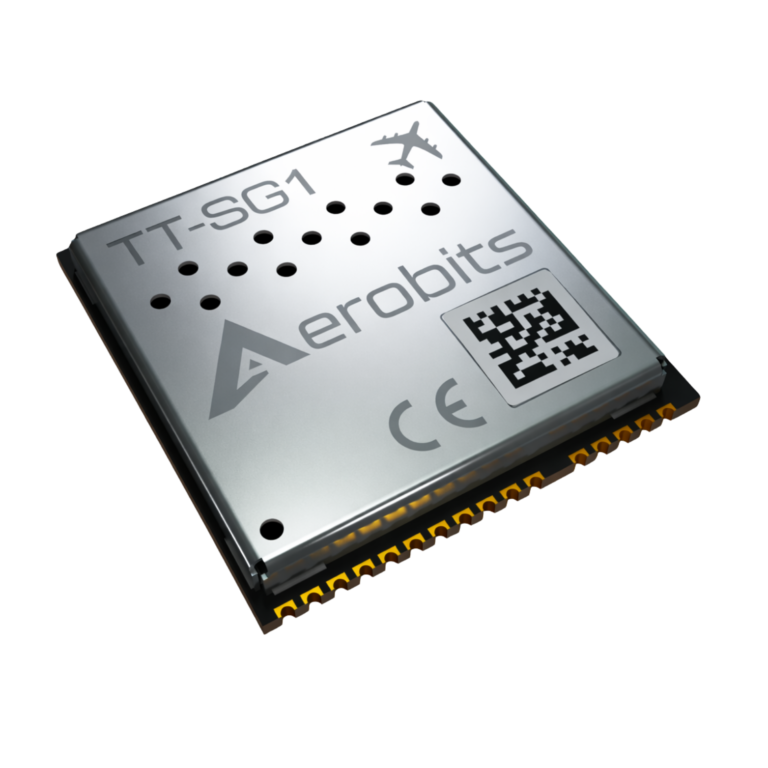

OEM receiver TT-SG1

ADS-B, GNSS
  • High quality and low price OEM ADS-­B/GNSS receiver series operating at a frequency 1090MHz. It is based on the proven FPGA-In-The_LoopTM technology, a unique combination of a single-core processor and FPGA.

  • The patented solution allows high-speed RF data processing with a significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.

  • Fast UART interface and easy configuration with AT­commands allow for the simple integration of the module with the user’s system. In addition, extra interfaces open the way to customize the firmware and extend the module with non­standard functions. There are several communication interfaces, protocols and special functionalities available on request.

Product status:

Want to evaluate TT-SG1?

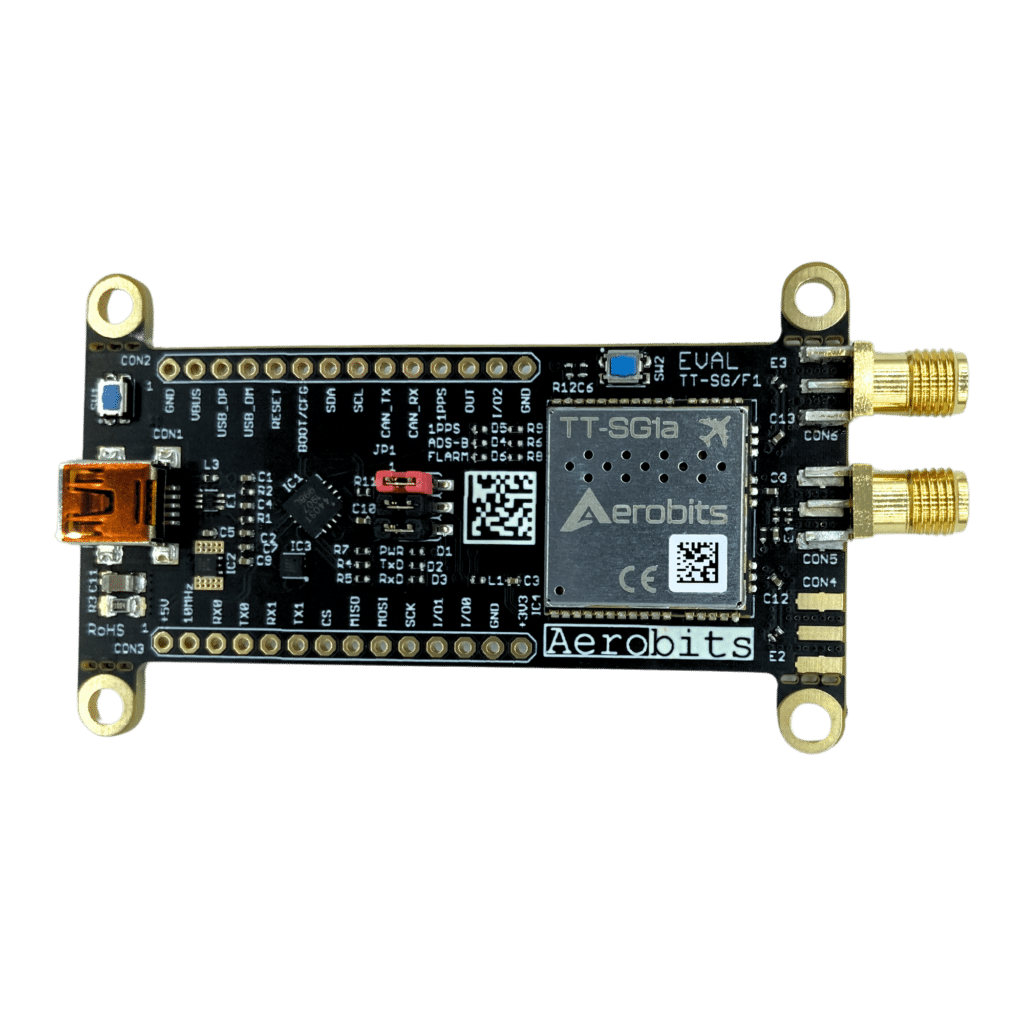

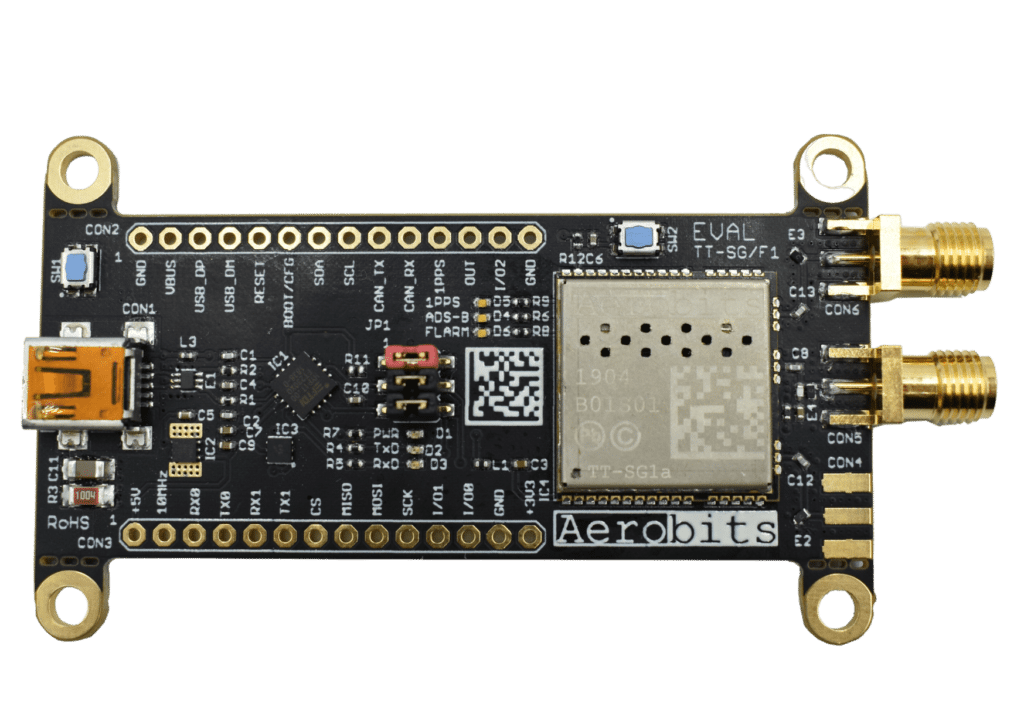

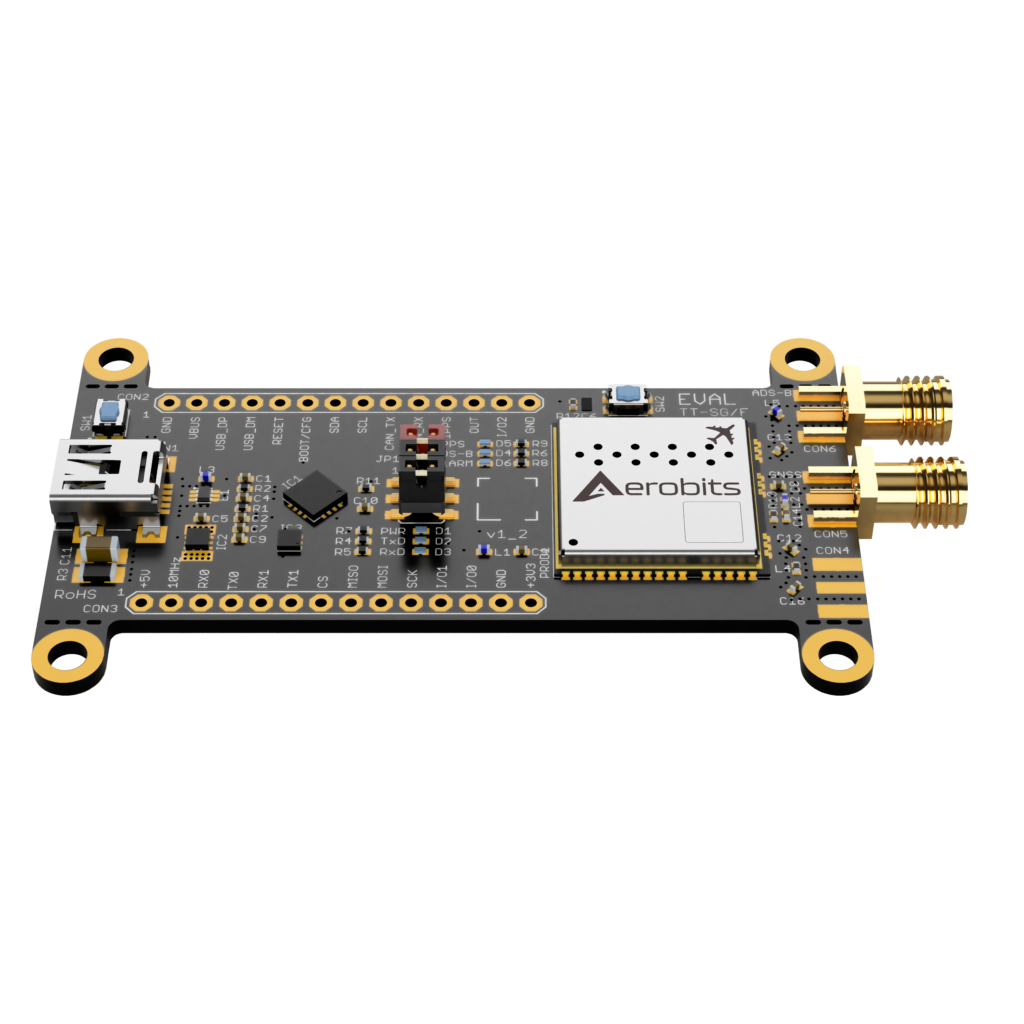

The evaluation kit provides a quick introduction to the TT­-SG1 module.

See beyond

Features:

Application:

Basic Electrical specification:

Parameter Description Typ. Unit.
Carrier frequency  ADS-B 1090 MHz
RX sensitivity  ADS-B  approx. -­90 ­ dBm
GNSS  approx. ­-167­ dBm
Power supply  VCC  min.3.0,  –  max.3.6 DCV
Current consumption  130 mA
Dimensions  19×18.5 (a) 19×22.5 (b) mm
