OEM - low level modules

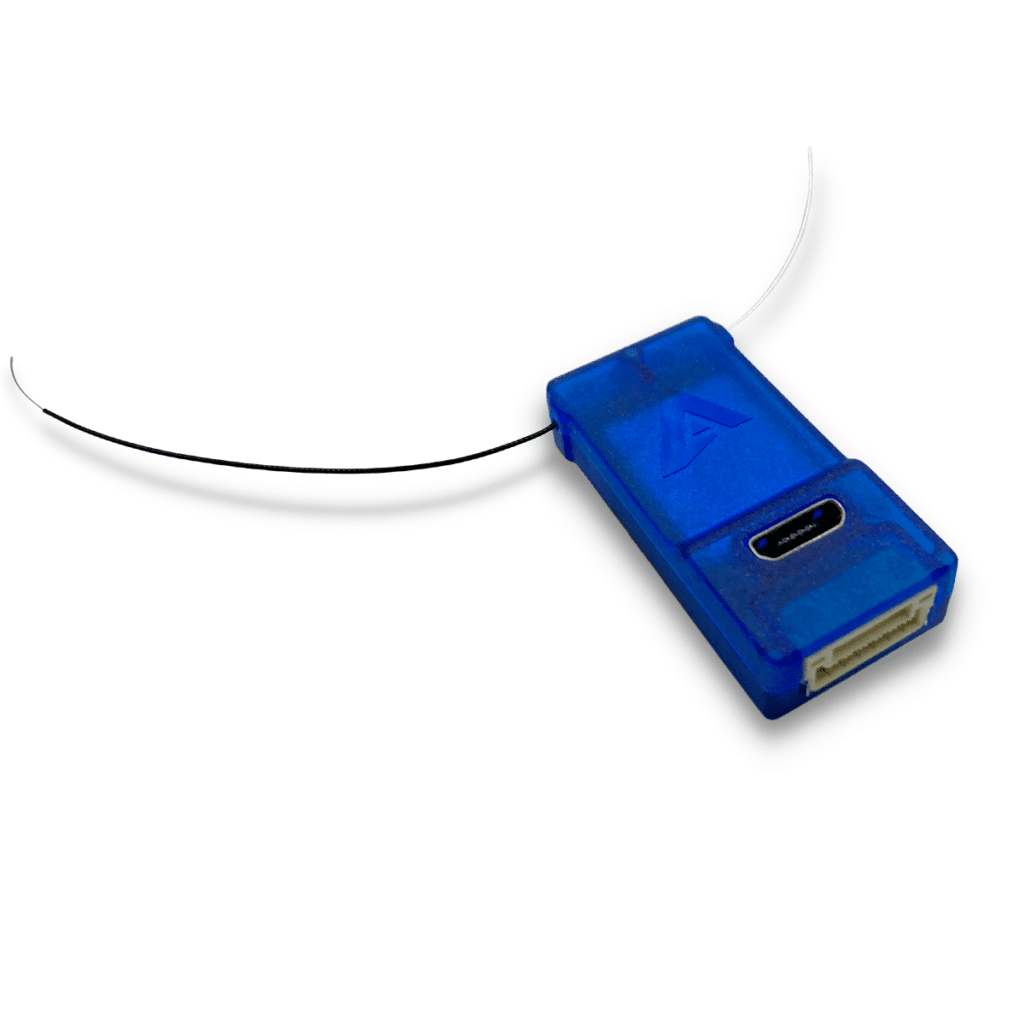

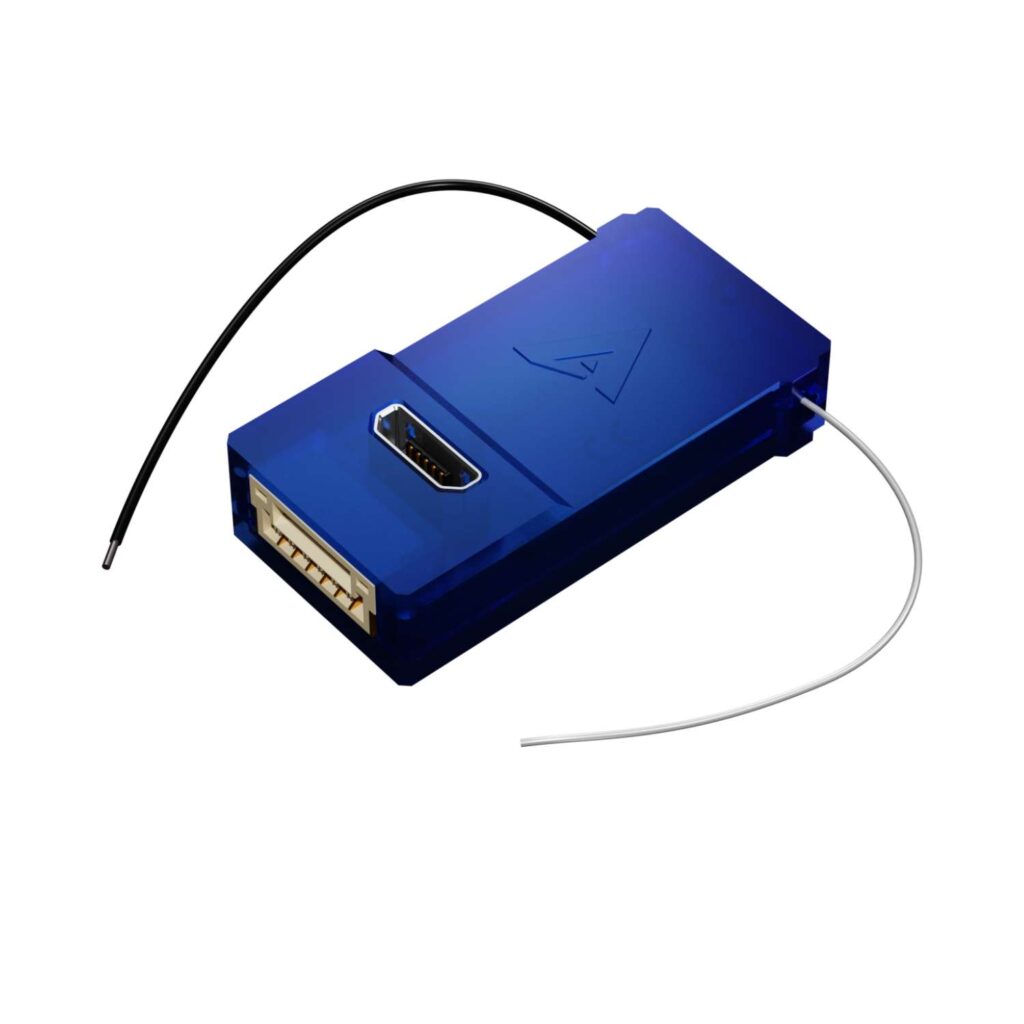

idME+ (Remote ID) – FCC Certificate

Remote Identification device

GNSS and pressure sensor

This Remote ID module (RID) is equipped with a high-quality multi-GNSS receiver and a barometric altitude sensor. Thanks to internal GNSS, it becomes an independent device from the autopilot – it only requires a power connection to function.

idME+ (UAS Remote Identification) is designed to meet the requirements of remote drone identification and localization in ASTM/ASD-STAN standards.

Why Remote ID from Aerobits?

  • Using the BLE broadcast technology, the device provides surveillance and drone operator identification capability based on any modern mobile device such as a smartphone or tablet
  • idME+ can be easily connected to Pixhawk controller via JST connector
  • Small outline and low power consumption allow it to be used in ultra-lightweight drones.
  • AT commands provide feasibility to configure broadcast messages, such as drone identification number, type of aircraft, etc. Additional authentication mechanisms are also available.

Notice:

Compliant with the required standards

Compliant with the newest version of ASTM and ASD_STAN documents

Features:

Application:

Compliant with ASTM and ASD-STAN
Increase of broadcast power
Be visible in the airspace, let the safety level rise
Integrated GNSS
Constant power source from UAS
Data transmitted via BLE up to 1,5 km
Easy integration with MAVLink protocol
Possibility to use any mobile application
BLE antenna
Power adjusted based on geolocation
Extended configuration options
Small outline and low power consumption

Keep your flying with trusted solutions

Basic Electrical specification:

ParameterDescriptionValueUnit
TX powerBluetooth+18dBm
Power supply V
Current consumptionaverage60mA
Dimensionsmain outline31.5 x 15.5 x 7.3mm
Weightwithout cable6g

Downloads:

1
NameSizeDate
FW_IDME_1_16_0_0D.aff

Download Copy Link 573.42 KB 2023-08-28 28 August 2023 2023-08-28 28 August 2023
573.42 KB28 August 2023
FW_IDME-V2_1_10_0_0D.aff

Download Copy Link 554.34 KB 2023-02-28 28 February 2023 2023-08-02 2 August 2023
554.34 KB2 August 2023

2

c0d22a5624

1
NameSizeDate
IDME_plus.step

Download Copy Link 7.49 MB 2023-06-27 27 June 2023 2023-05-24 24 May 2023
7.49 MB24 May 2023

3

c0d22a5624



1
NameSizeDate
PP_idME_Plus_Datasheet_26e-v1_1_22.pdf PP_idME_Plus_Datasheet_26e-v1.1.22.pdf

Open Download Copy Link 980.76 KB 2023-09-19 19 September 2023 2023-09-19 19 September 2023
980.76 KB19 September 2023
PP_idME_Plus_Datasheet_26e-v1_1_20.pdf PP_idME_Plus_Datasheet_26e-v1.1.20.pdf

Open Download Copy Link 980.59 KB 2023-09-04 4 September 2023 2023-09-04 4 September 2023
980.59 KB4 September 2023
PP_idME_Plus_Datasheet_26e-v1_1_19.pdf PP_idME_Plus_Datasheet_26e-v1.1.19.pdf

Open Download Copy Link 979.77 KB 2023-09-04 4 September 2023 2023-09-04 4 September 2023
979.77 KB4 September 2023
PP_idME_Plus_Datasheet_26e-v1_1_16.pdf PP_idME_Plus_Datasheet_26e-v1.1.16.pdf

Open Download Copy Link 979.69 KB 2023-08-23 23 August 2023 2023-08-10 10 August 2023
979.69 KB10 August 2023
PP_idME_Plus_Datasheet_26e-v1_1_5.pdf PP_idME_Plus_Datasheet_26e-v1.1.5.pdf

Open Download Copy Link 979.55 KB 2023-08-23 23 August 2023 2023-06-05 5 June 2023
979.55 KB5 June 2023

8

c0d22a5624

Windows software

1
NameSizeDate
Micro_ADSB_App-v1_24_0_win_setup.zip Micro_ADSB_App-v1.24.0_win_setup.zip

Download Copy Link 11.05 MB 2023-08-29 29 August 2023 2023-08-29 29 August 2023
11.05 MB29 August 2023
Micro_ADSB_App-v1_23_3_win_setup.zip Micro_ADSB_App-v1.23.3_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
11.05 MB4 August 2023
Micro_ADSB_App-v1_23_1_win_setup.zip Micro_ADSB_App-v1.23.1_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
11.05 MB25 April 2023

11

c0d22a5624

User guide

1
NameSizeDate
SOFT_MicroADSB_Datasheet_01m-v1_1_0.pdf SOFT_MicroADSB_Datasheet_01m-v1.1.0.pdf

Open Download Copy Link 648.59 KB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
648.59 KB15 May 2023
