EVAL-TT-SU2

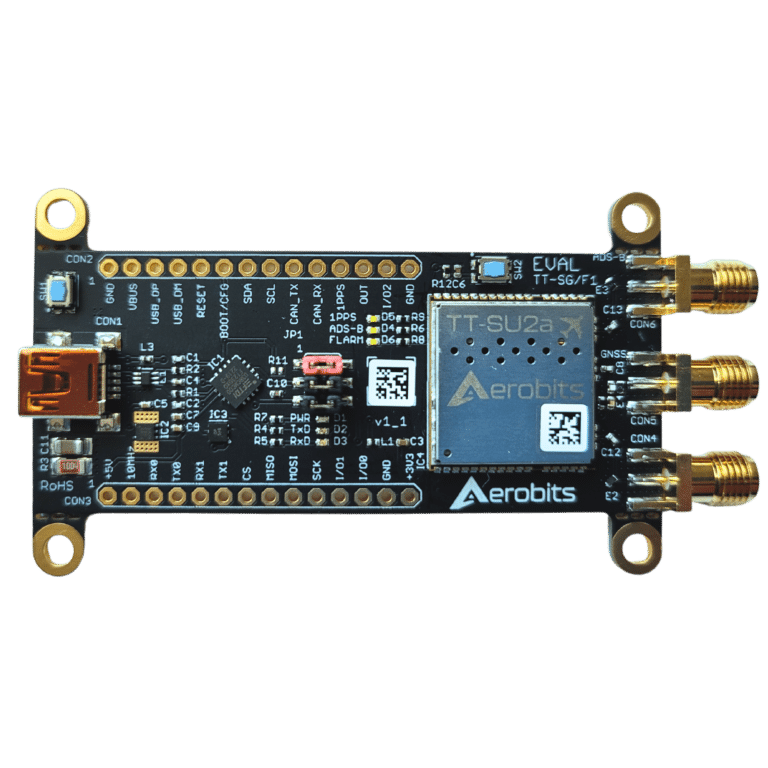

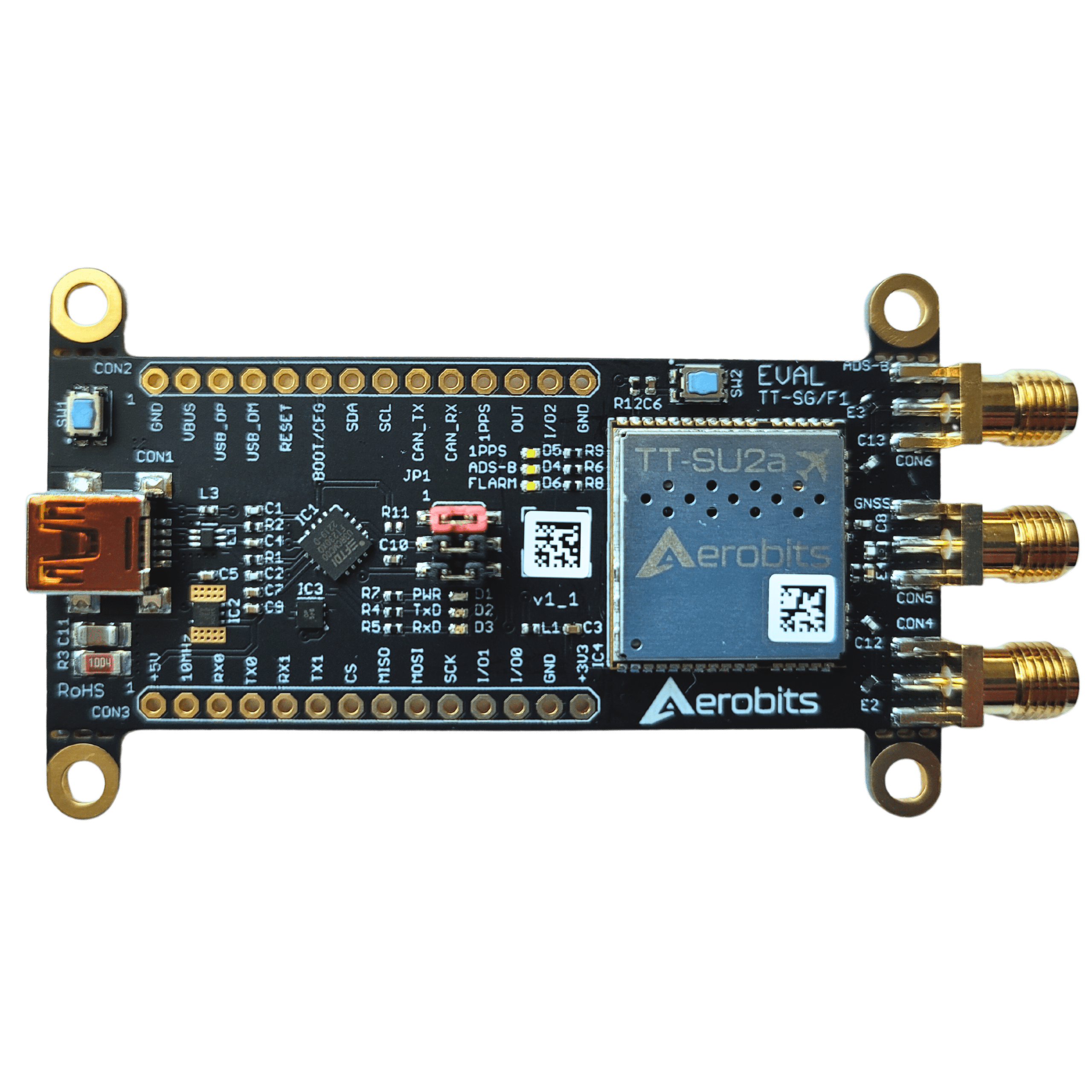

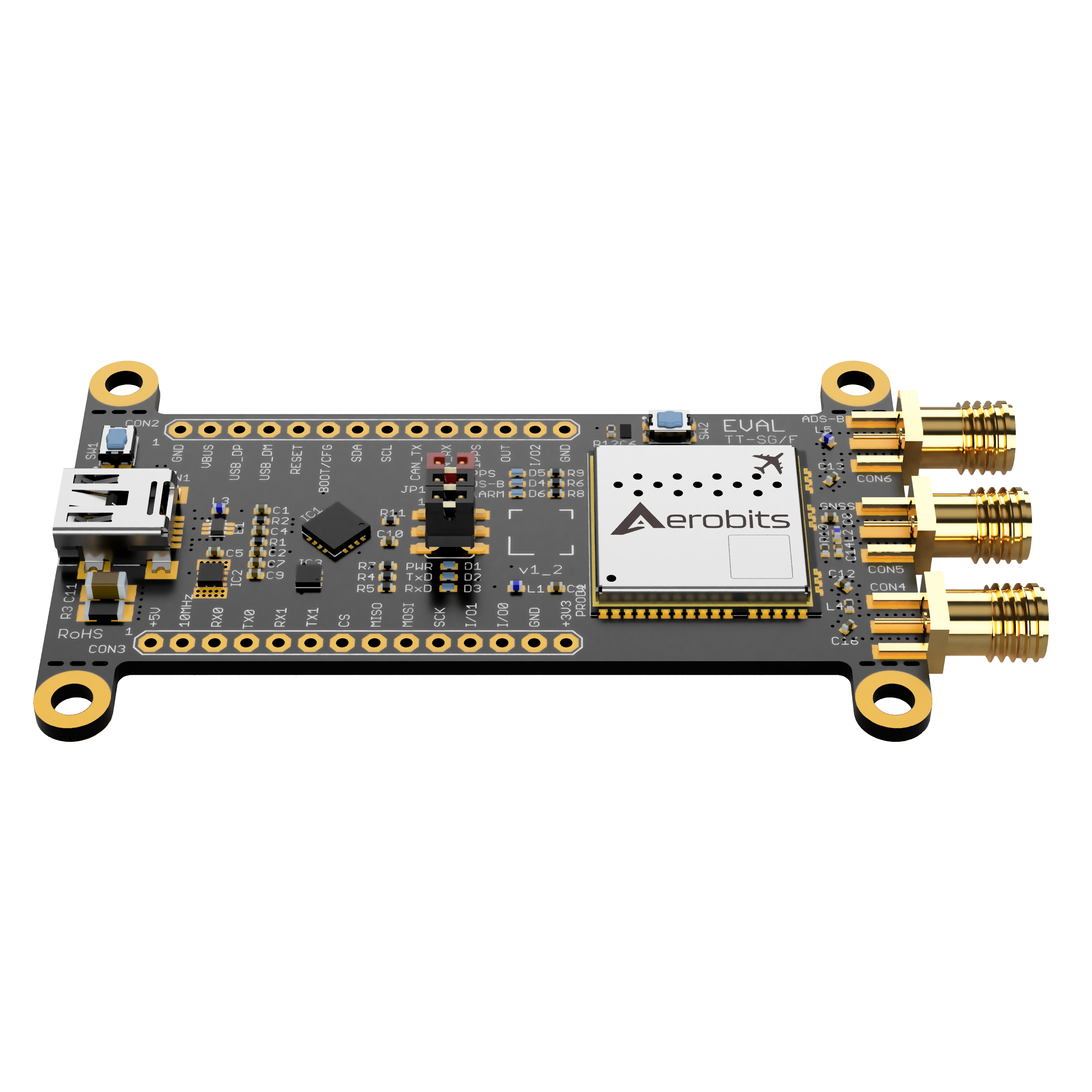

Evaluation board to the TT-SU2

  • The evaluation kit provides a quick introduction to the TT-SU2 module. It is a high-quality 1090 MHz band receiver with an integrated ADS-B (Automatic Dependent Surveillance-Broadcast) decoder, conforming to MOPSs specified in TSO-C199. The TT-SU2 module also contains an internal GNSS module (Ublox), to utilize concurrent reception of up to three GNSS systems (GPS / Galileo together with BeiDou or GLONASS). Another key feature is implemented UAT (Universal Access Transceivers) 978 MHz band receiver which supports multiple broadcast services, including flight information services (FIS-B) and traffic information services (TIS-B), in addition to automatic dependent surveillance—broadcast (ADS-B).
  • EVAL-TT-SU2 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping. The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views.

Product status:

Featured:

Kit contents:

Basic Electrical specification:

Parameter Min. Typ. Max Unit
Carrier frequency ADS-B 1090 MHz
Carrier frequency ADS-B 978 MHz
RX sensitivity ADS-B approx. -85 dBm
RX sensitivity GNSS approx. -167 dBm
RX sensitivity UAT approx. -95 dBm
AERO (baud) 115200 921600 3000000 bps
Operation temperature -30 +85 °C
Storage temperature -5 +40 °C
