OEM - low level modules

TT-SU2

OEM receiver TT-SU2

ADS-B, GNSS, UAT

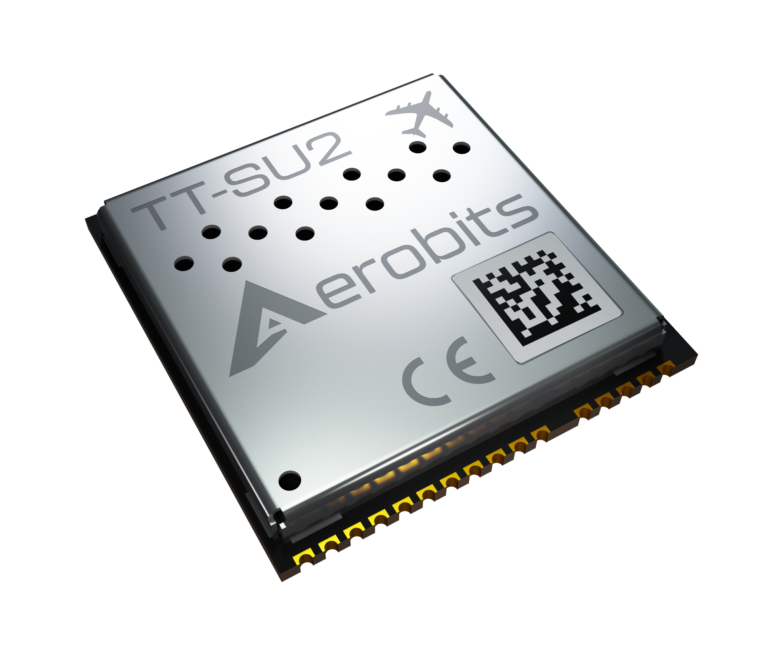

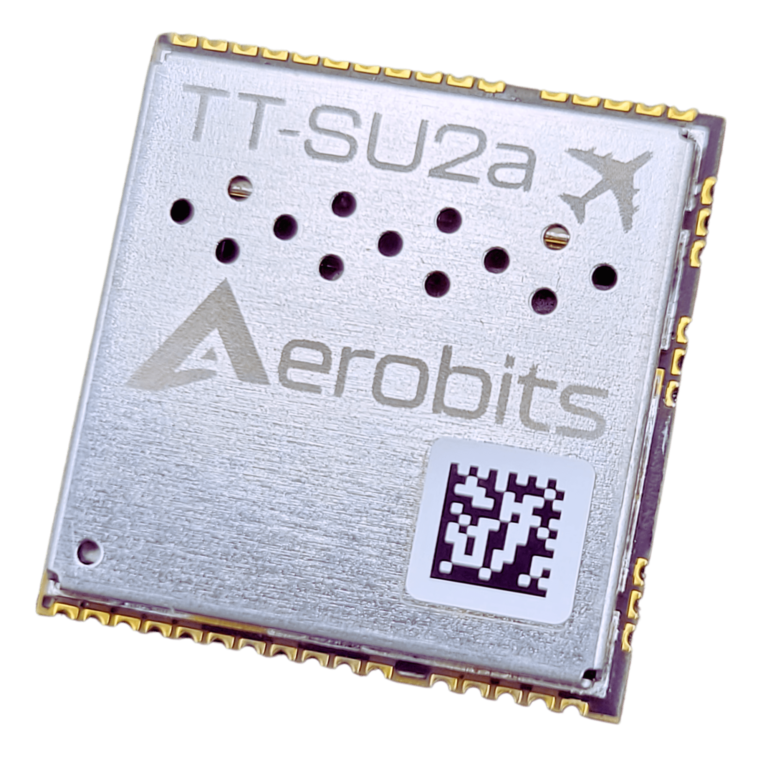

  • TT-SU2 is a high-quality and low-price OEM ADS-B/GNSS receiver/UAT receiver series operating at 1090MHz and 987MHz. It is based on the proven FPGA-In-The-Loop™ technology, which is a unique combination of a single-core processor and FPGA. The patented solution allows high-speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.
  • The basic version of module offers the possibility of receiving and decoding ADS-B and Mode-A/C/S in different modes. The analysis of the power/quality of the RF signal and the use of time stamps facilitates the implementation of multilaterations, and the fast UART interface and easy configuration with AT commands allow for the simple integration of the module with the user’s system. In addition, extra interfaces open the way to customize the firmware and extend the module with non-standard functions. There are several communication interfaces, protocols and special functionalities available on request.


Product status:

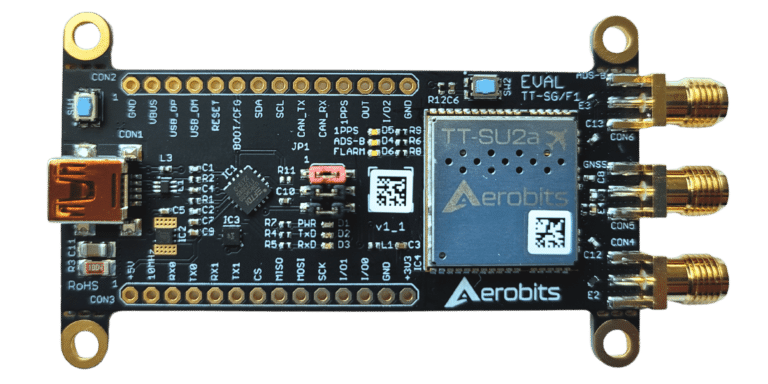

Want to evaluate TT-SU2?

The evaluation kit provides a quick introduction to the TT­-SU2 module.

See beyond

Features:

Application:

Basic Electrical specification:



ParameterDescription

Min.

Typ.

Max.

Unit

Carrier frequency ADS-B

 1090MHz
Carrier frequency UAT

 978MHz

RX sensitivity GNSS



approx. -167

dBm

RX sensitivity UAT



approx. -95

dBm

RX sensitivity ADS-B



approx. -85

dBm

AERO (baud)

AT commands

115200

921600

3000000

bps

Antenna connector

RF-IPX125-1G-AU (version b only)







Downloads:
