OEM ADS-B receiver TT-SC1

  • TT-SC1 is a high-quality and low-price OEM ADS-B receiver series operating at 1090MHz. The patented FPGA-In-The_LoopTM technology allows high-speed RF data processing with a significantly reduced number of electronic components.

  • Simultaneous miniaturization of the module and its OEM nature opens a wide range of possible applications.

ETSI certification for TT-SC1 (a,b)

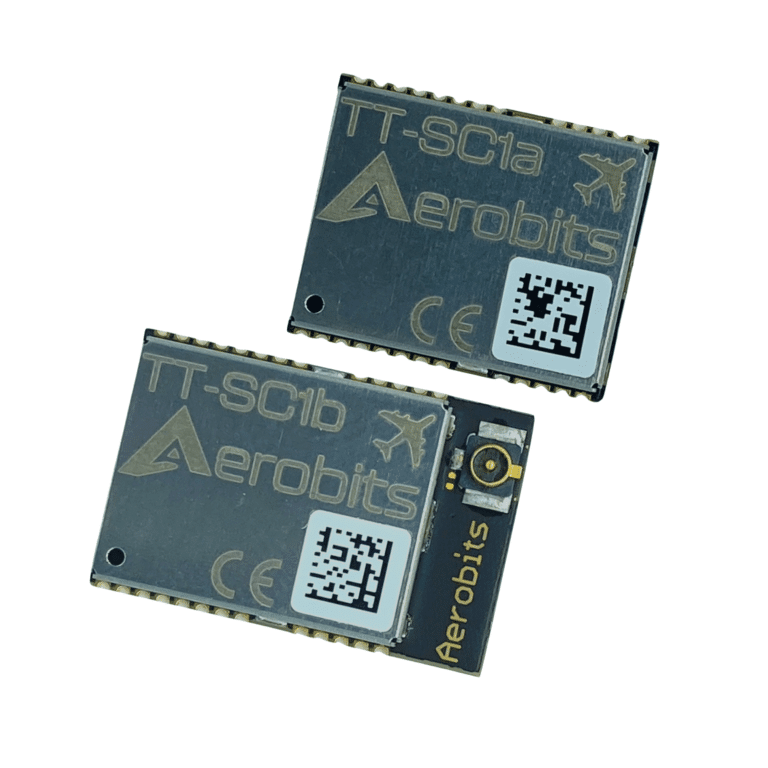

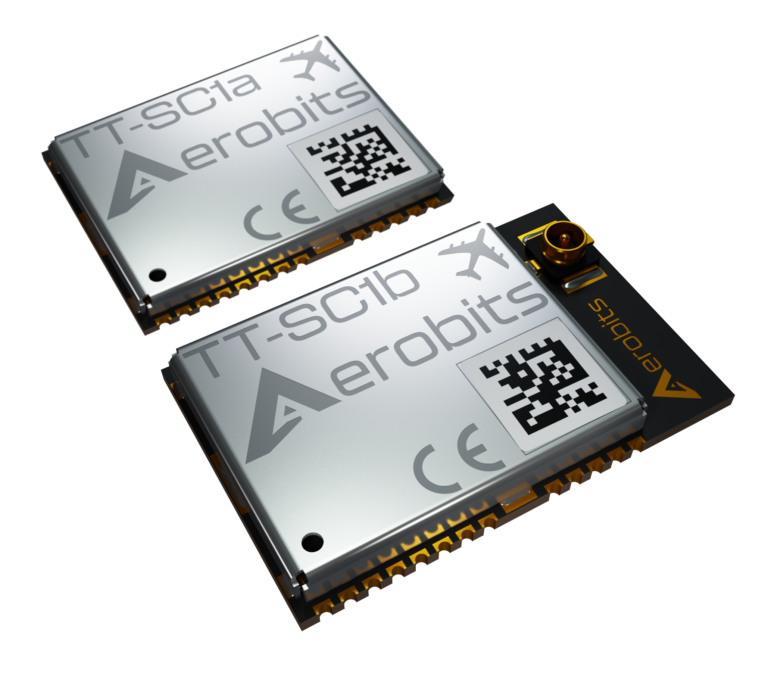

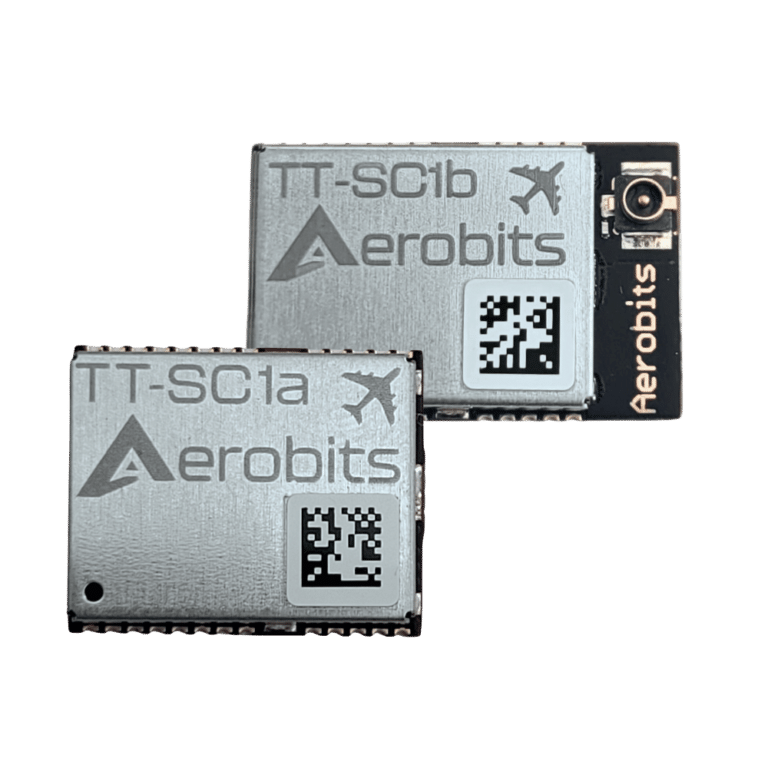

TT-SC1 series are a high performance OEM Mode -A/-C/-S and ADS-B receivers operating at 1090MHz. The patented FPGA-In-The_Loop™ technoiogy allows high-speed RF data processing with significantly reduced number of electronic components. Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications.

Want to evaluate TT-SC1?

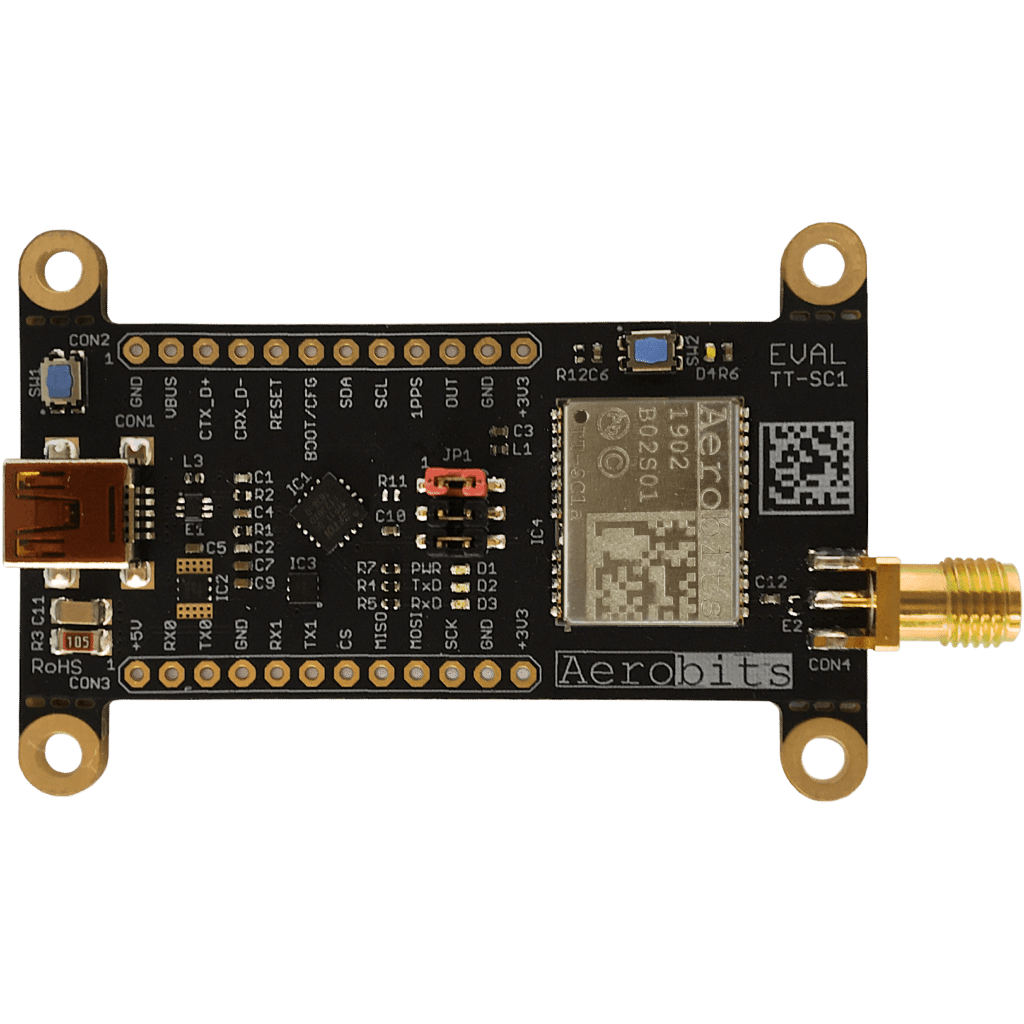

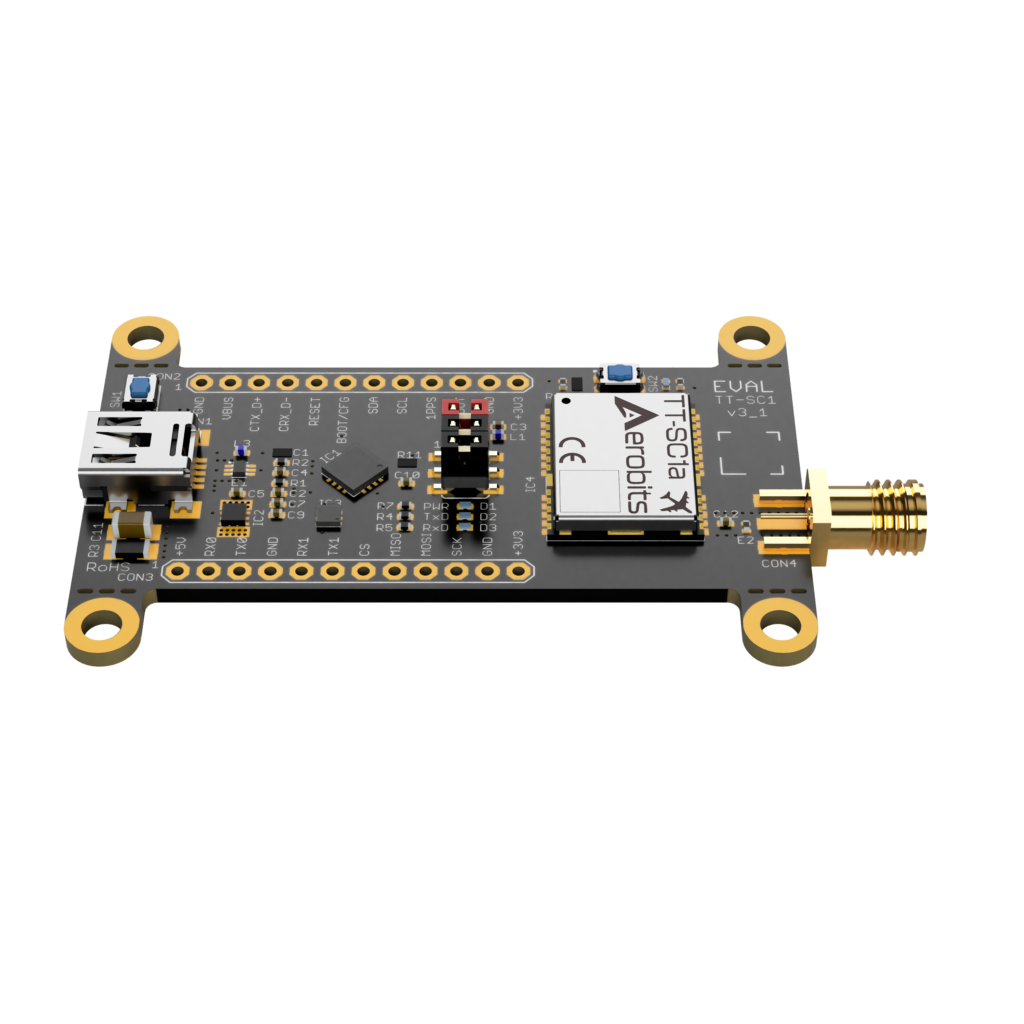

The evaluation kit provides a quick introduction to the TT-SC1 module.

See beyond

Features:

Application:

Basic Electrical specification:

Parameter Description Typ. Unit.
Carrier frequency   1090 MHz
RX sensitivity Operation at 50Ω -80 dBm
Power supply   3.3V DCV
Current consumption   70 mA
Dimensions   13×16 (a) 13×20 (b) mm
