EVAL-TT-SG1

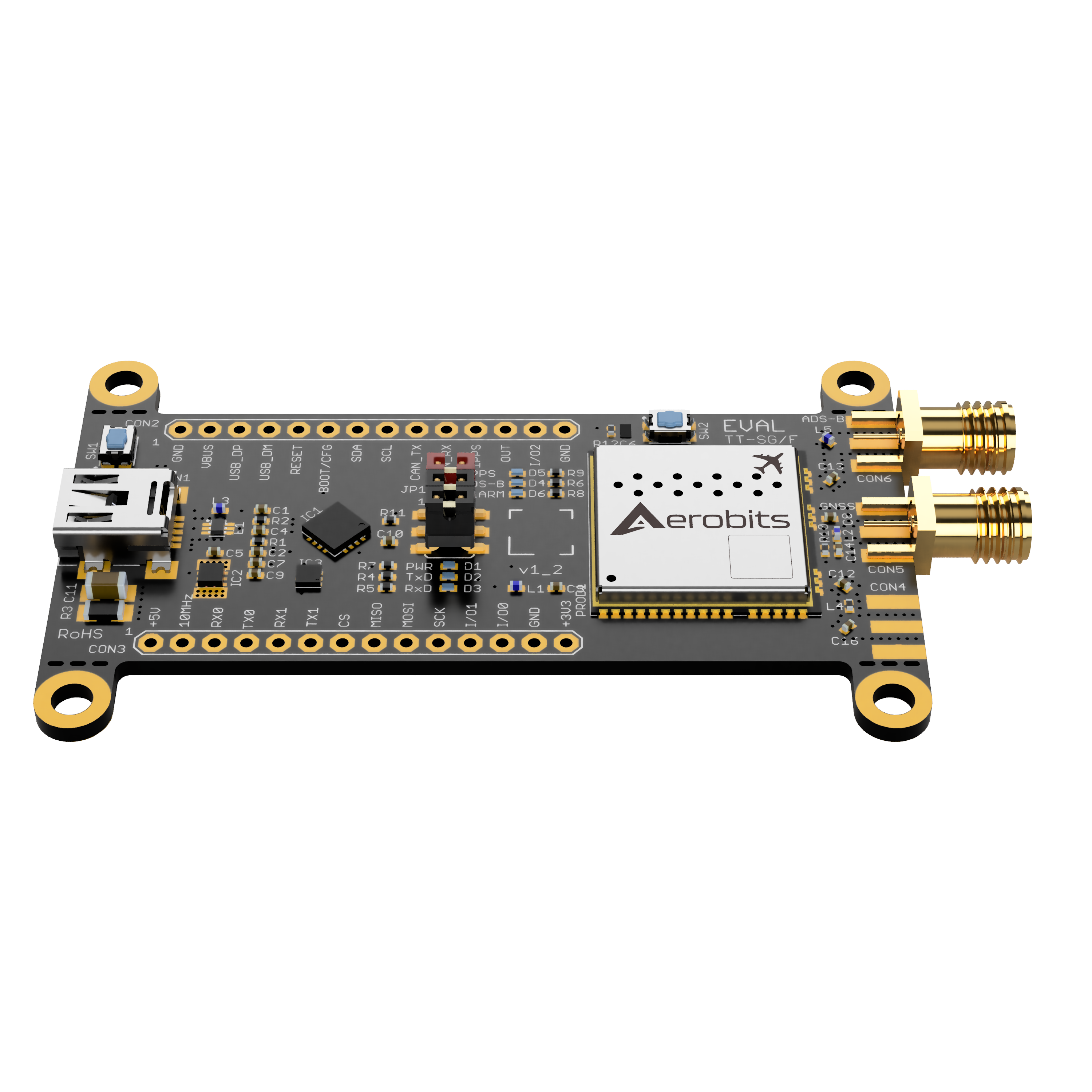

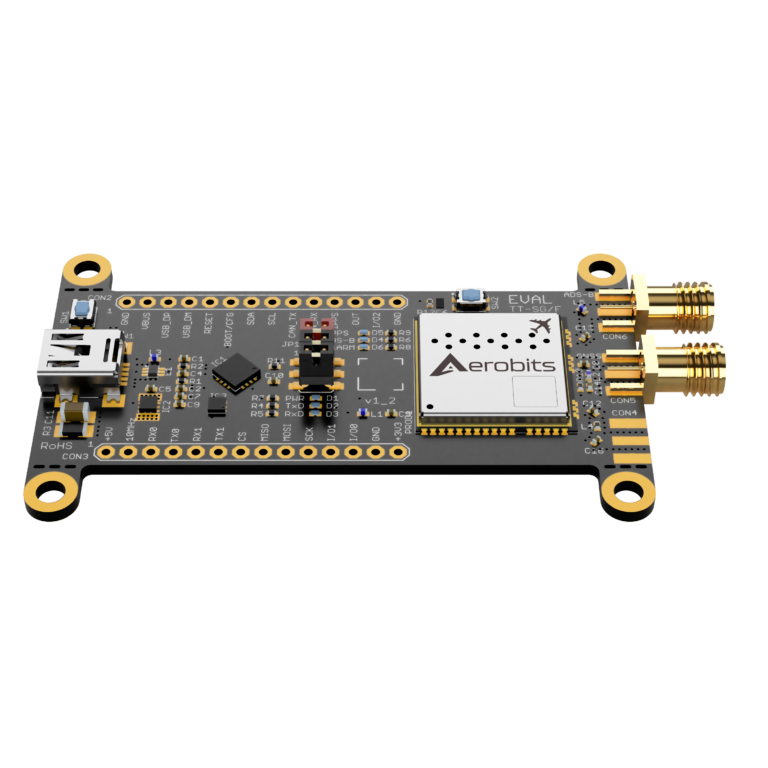

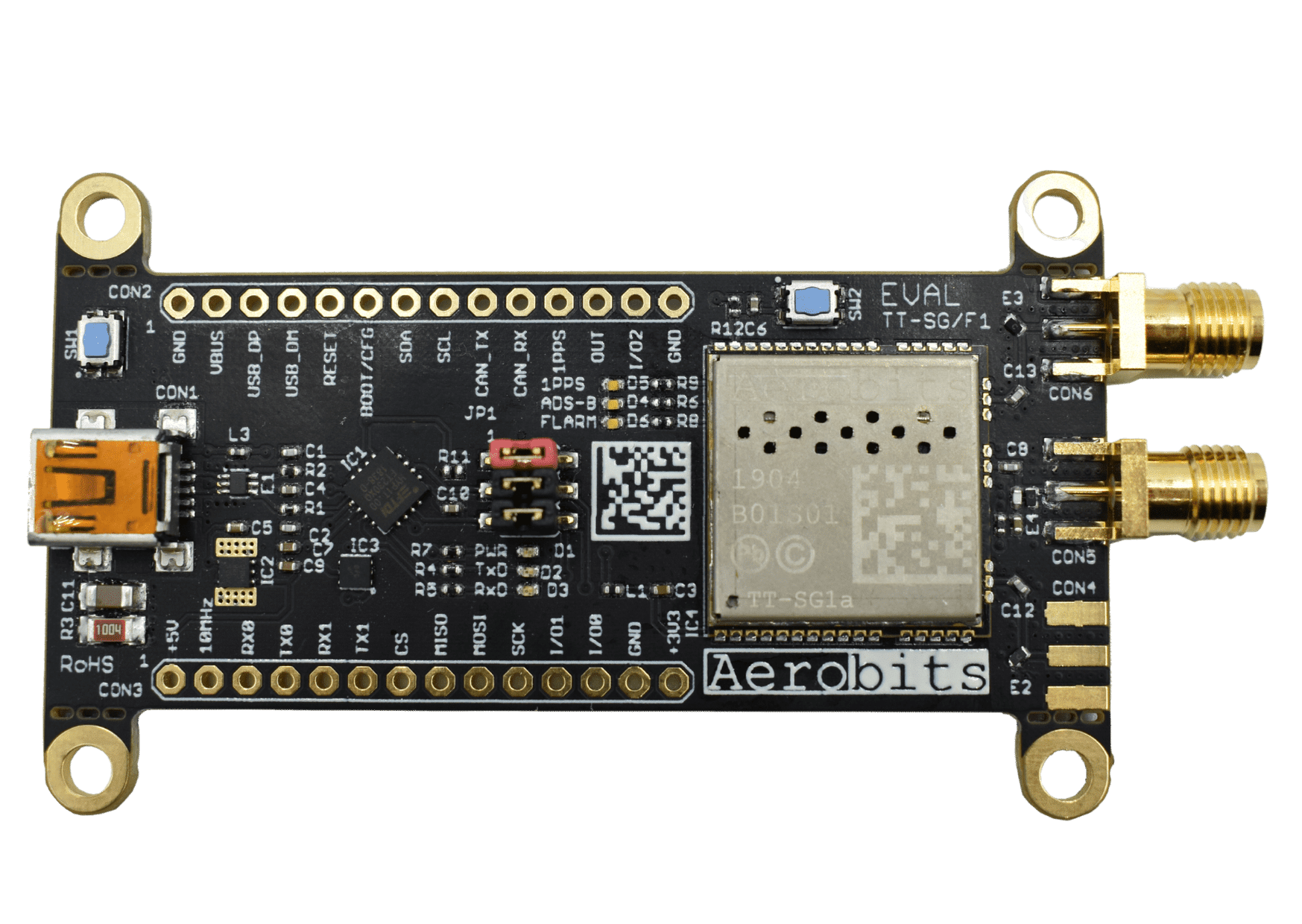

Evaluation board to the TT-SG1

The evaluation kit provides a quick introduction to the TTSG1 module. It is a high quality 1090MHz band receiver with an integrated A-DSB (Automatic Dependent Surveillance Broadcast) decoder, conforming to MOPSs specified in TSOC199.
EVAL TT-SG1 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping.
The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views.

Product status:

Featured:

Quick start with the OEM TT-SG1 module
Designed to be powered by USB or an external 5V supply
Two LED for USB communication and three LED for internal functions
Virtual COM port with simple firmware update capability
Extension header for external power supply and communication
ESD protection
All necessary components in the box (antenna, USB cable, etc.)
Dedicated software available

Kit contents:

Basic Electrical specification:

Parameter	Description	Typ.	Unit.
Carrier frequency	ADS-B	1090	MHz
RX sensitivity	ADS-B	approx. -87	dBm
GNSS		approx. -167	dBm
Power supply	USB or external 5V or 3.3V	5V or 3.3V	DCV
Current consumption		130	mA
Dimensions		70×43	mm
