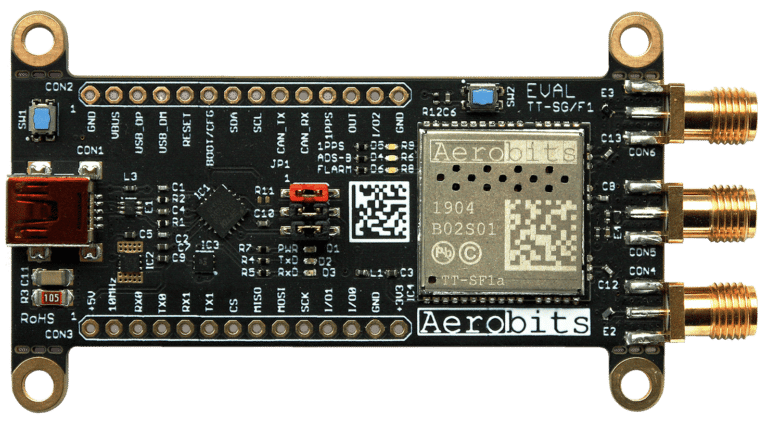

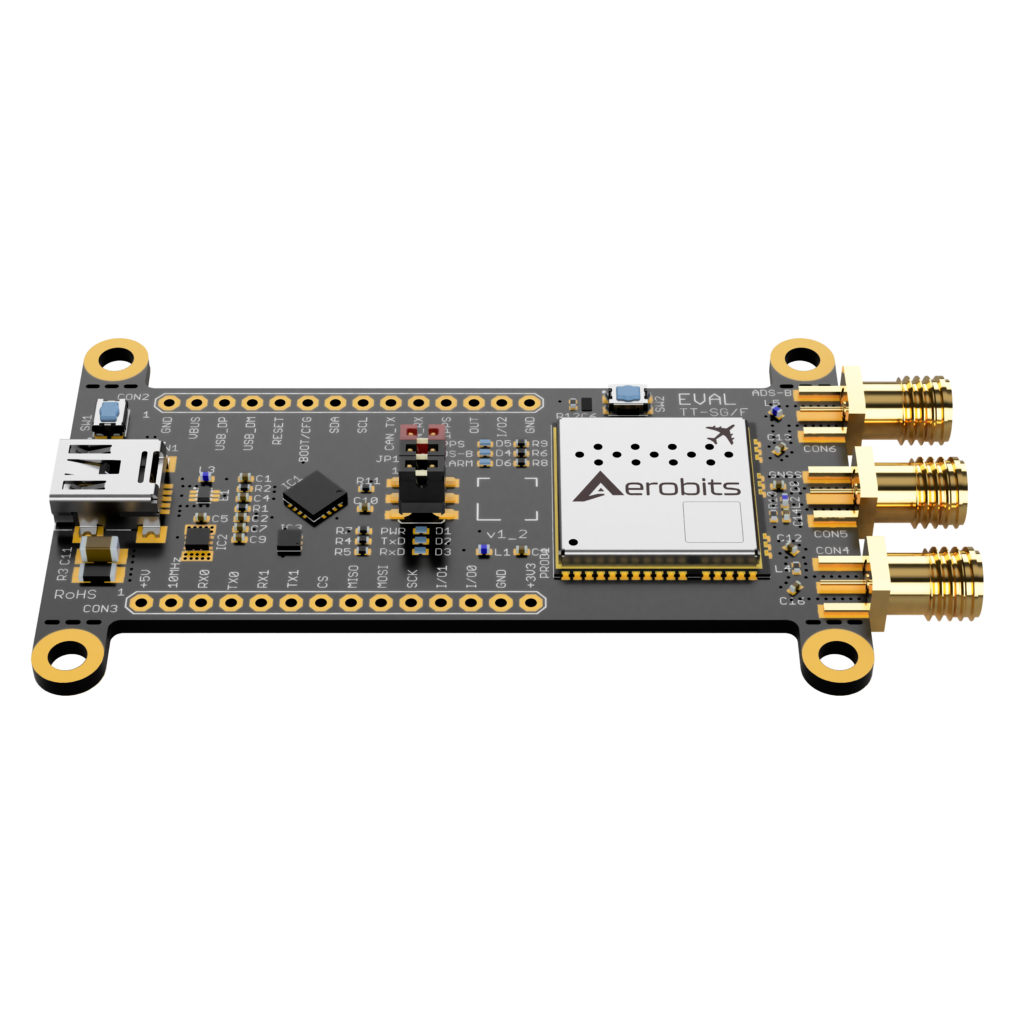

EVAL-TT-SF2

Evaluation board to the TT-SF2 module

  • TT-SF2 is a high quality and low price OEM ADS-B/GNSS receiver/FLARM transceiver series operating at 1090MHz and region dependent FLARM frequency. It is based on the proven FPGA-In-The-Loop™ technology, which is a unique combination of a pingle and FPGA. The patented solution allows high-speed RF data processing with significantly reduced number of electronic components.

  • Simultaneous miniaturization of the module and its OEM nature open a wide range of possible applications. The TT-SF2 module contains also internal GNSS module (Ublox), to utilize concurrent reception of up to three GNSS systems (GPS / Galileo together with BeiDou or GLONASS). Other key feature is implemented FLARM (EU: 868 MHz, USA: 915 MHz) band receiver/transceiver, FLARM is the traffic aware-ness and collision avoidance technology for General Aviation, light aircraft, and UAVs.

  • EVAL-TT-SF2 with the dedicated software allows the user to discover the module properties within a short time, paving the way towards quick prototyping. The software allows simple configuration of the module and data visualization in various modes, from raw data, through tabular and 3D views.

Product status:

Featured:

Kit contents:

Basic Electrical specification:

ParameterDescription Typ.Unit.
Carrier frequency ADS-B 1090MHz
 FLARM 868 (region dependent)
RX sensitivity ADS-B approx. -­80 ­ dBm
 FLARM approx. ­-95
 GNSS approx. ­-167­
TX power FLARM  max. +14dBm
Power supply  3.3V 5V(RF)DCV
Current consumption  260mA
Dimensions  70×43mm

Downloads:

1
NameSize
FW_TTSF1_2_73_1_0D.aff

Download Copy Link 265.42 KB 2024-06-28 28 June 2024 2024-07-14 14 July 2024
265.42 KB
FW_TTSF1_2_48_3_0D.aff

Download Copy Link 270.44 KB 2023-07-28 28 July 2023 2024-06-28 28 June 2024
270.44 KB
FW_TTSF1_2_45_0_0D.aff

Download Copy Link 269.44 KB 2023-06-28 28 June 2023 2023-07-28 28 July 2023
269.44 KB
FW_TTSF1_2_40_0_0D.aff

Download Copy Link 277.47 KB 2023-05-04 4 May 2023 2023-06-21 21 June 2023
277.47 KB
FW_TTSF1_2_12_1_280D.aff

Download Copy Link 249.28 KB 2023-02-28 28 February 2023 2022-02-27 27 February 2022
249.28 KB

5

8b8f2725ee



1
NameSize
OEM_SF_Datasheet_21o-v1_1_54.pdf OEM_SF_Datasheet_21o-v1.1.54.pdf

Open Download Copy Link 1.21 MB 2024-06-28 28 June 2024 2024-06-28 28 June 2024
1.21 MB
OEM_SF_Datasheet_21o-v1_1_41.pdf OEM_SF_Datasheet_21o-v1.1.41.pdf

Open Download Copy Link 1.16 MB 2024-03-18 18 March 2024 2024-03-18 18 March 2024
1.16 MB
OEM_SF_Datasheet_21o-v1_1_37.pdf OEM_SF_Datasheet_21o-v1.1.37.pdf

Open Download Copy Link 1.16 MB 2024-02-01 1 February 2024 2024-02-01 1 February 2024
1.16 MB
OEM_SF_Datasheet_21o-v1_1_30.pdf OEM_SF_Datasheet_21o-v1.1.30.pdf

Open Download Copy Link 1.16 MB 2024-01-08 8 January 2024 2024-01-08 8 January 2024
1.16 MB
OEM_SF_Datasheet_21o-v1_1_16.pdf OEM_SF_Datasheet_21o-v1.1.16.pdf

Open Download Copy Link 1.37 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
1.37 MB
OEM_SF_Datasheet_21o-v1_1_8.pdf OEM_SF_Datasheet_21o-v1.1.8.pdf

Open Download Copy Link 1.37 MB 2023-08-23 23 August 2023 2023-06-20 20 June 2023
1.37 MB

11

8b8f2725ee

1
NameSize
EVAL_SF_Datasheet_21e-v1_1_0.pdf EVAL_SF_Datasheet_21e-v1.1.0.pdf

Open Download Copy Link 1.26 MB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
1.26 MB

12

8b8f2725ee

Windows software

1
NameSize
Micro_ADSB_App-v1_24_1_win_setup.zip Micro_ADSB_App-v1.24.1_win_setup.zip

Download Copy Link 11.05 MB 2024-06-14 14 June 2024 2024-06-14 14 June 2024
11.05 MB
Micro_ADSB_App-v1_24_0_win_setup.zip Micro_ADSB_App-v1.24.0_win_setup.zip

Download Copy Link 11.05 MB 2023-08-29 29 August 2023 2023-08-29 29 August 2023
11.05 MB
Micro_ADSB_App-v1_23_3_win_setup.zip Micro_ADSB_App-v1.23.3_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-08-04 4 August 2023
11.05 MB
Micro_ADSB_App-v1_23_1_win_setup.zip Micro_ADSB_App-v1.23.1_win_setup.zip

Download Copy Link 11.05 MB 2023-08-23 23 August 2023 2023-04-25 25 April 2023
11.05 MB

16

8b8f2725ee

User guide

1
NameSize
SOFT_MicroADSB_Datasheet_01m-v1_1_0.pdf SOFT_MicroADSB_Datasheet_01m-v1.1.0.pdf

Open Download Copy Link 648.59 KB 2023-08-23 23 August 2023 2023-05-15 15 May 2023
648.59 KB

17

8b8f2725ee
