DRS – Dual-Band Receiver Station

DRS-1: receiver station
ADS-B, FLARM, UAT, Remote ID versions

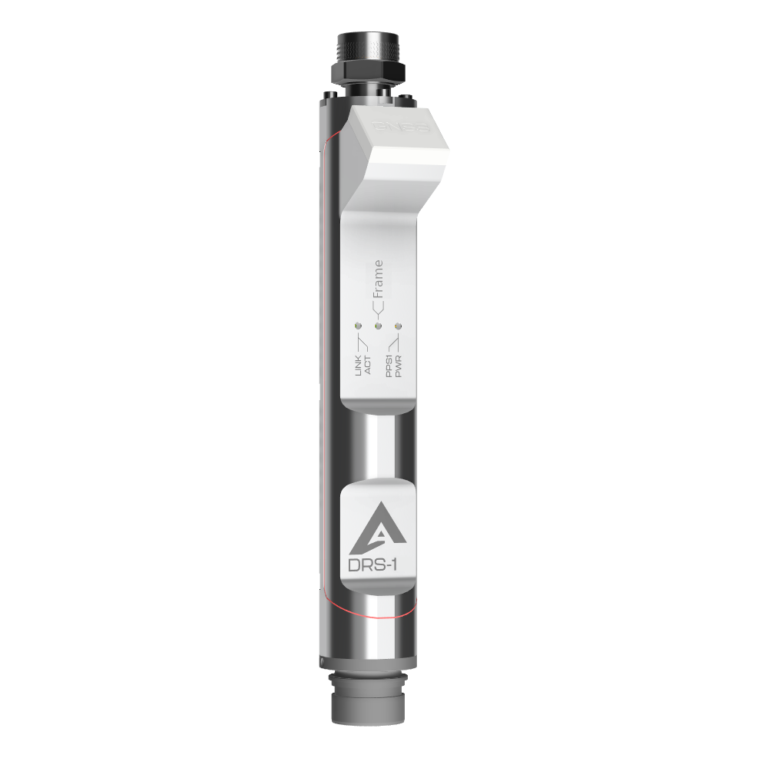

The DRS-1 is a high-performance receiver station for direct installation on the antenna. It can simultaneously process ADS-B (1090MHz), FLARM(868MHz, 915MHz), UAT(978MHz) or RemoteID with BLE(2400MHz) and Wi-Fi(2400MHz) signals, offering excellent input sensitivity. The new generation multi-GNSS receiver implemented supports four satellite constellations simultaneously for precise position and timestamp.

The DRS-1 station is in an IP67 weatherproof enclosure, with power and data provided by a single Power-over-Ethernet (POE) network cable connected to your LAN. DRS-1 can be ordered separately or with the recommended antenna and network cable with a maximum length of up to 100m.

NOTE:

  • The device to operate on FLARM frequency requires a FLARM license. The license can be obtained with the device from Aerobits upon purchase. FLARM library expires after a year and must be updated with the latest firmware.
  • When selecting DRS-1 with FLARM, pay attention to your country’s ISM band and choose the appropriate 868 MHz(will operate in Europe, Asia (except Israel), Africa, and New Zealand) or 915 MHz(will operate in North America, South America, Israel, and Australia.) variant.

Product status:

Features

Applications​

Details of the technologies used in each version

VariantGNSSADS-BFLARMUATRemoteID
DRS-1A
DRS-1F
DRS-1U
DRS-1R



Downloads:

1
NameSize
FW_DRS1U_2_50_0_0D.aff

Download Copy Link 336.25 KB 2024-04-25 25 April 2024 2024-04-16 16 April 2024
336.25 KB

1

0edb5c0fdb

1
NameSize
FW_DRS1R_1_19_8_0D.aff

Download Copy Link 980 KB 2024-04-25 25 April 2024 2024-04-16 16 April 2024
980 KB

2

0edb5c0fdb

1
NameSize
FW_DRS1F_2_48_3_0D.aff

Download Copy Link 396.48 KB 2024-04-25 25 April 2024 2024-04-16 16 April 2024
396.48 KB

3

0edb5c0fdb

1
NameSize
FW_DRSA_2_61_1_0D.aff

Download Copy Link 200.17 KB 2024-04-25 25 April 2024 2024-04-16 16 April 2024
200.17 KB

4

0edb5c0fdb

1
NameSize
GI_DRS_1_Datasheet_36ds-v1_1_50.pdf GI_DRS_1_Datasheet_36ds-v1.1.50.pdf

Open Download Copy Link 919.42 KB 2024-04-25 25 April 2024 2024-04-25 25 April 2024
919.42 KB

5

0edb5c0fdb



1
NameSize
DRS_ANT.step

Download Copy Link 11.93 MB 2024-04-25 25 April 2024 2024-04-25 25 April 2024
11.93 MB
DRS.step

Download Copy Link 10.57 MB 2024-04-25 25 April 2024 2024-04-25 25 April 2024
10.57 MB
