TT-MC1

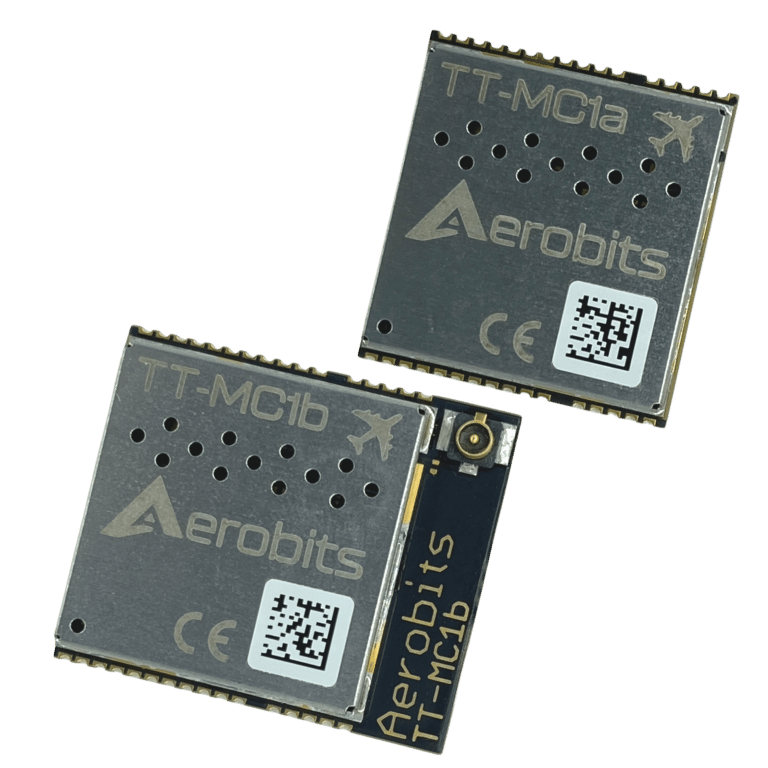

OEM ADS-B receiver TT-MC1

  • TT-MC1 is a high-performance OEM receiver series operating at 1090MHz. The patented FPGA-In-The_LoopTM technology and 3-Core CPU allows high-speed RF data processing with  significantly reduced number of electronic components.
  • TT-MC1 offers the possibility of receiving and decoding ADS-B and Mode-A/C/S.
  • The analysis of the power/quality of the RF signal and the use of time stamps facilitates the implementation of multilaterations.

Product status:

Want to evaluate TT-MC1?

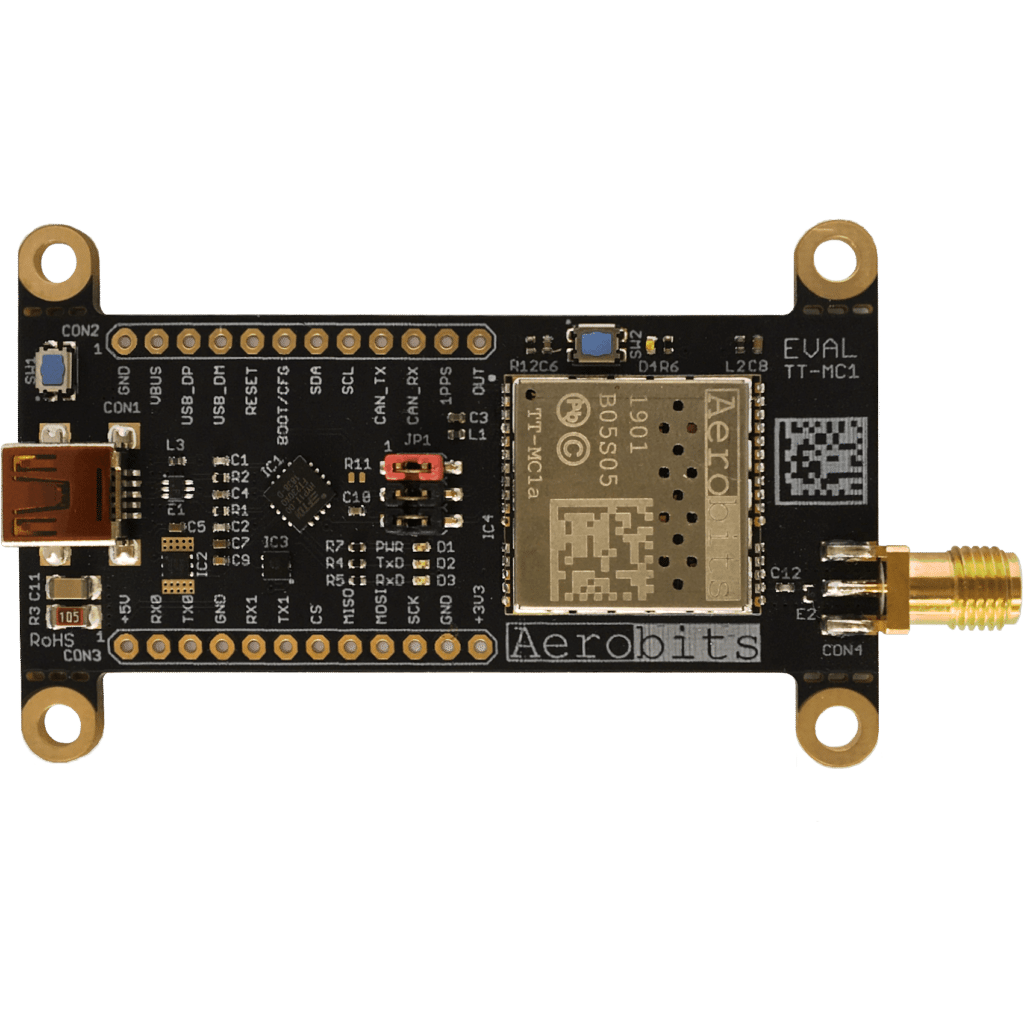

The evaluation kit provides a quick introduction to the TT-MC1 module.

See beyond

Features:

Application:

Basic Electrical specification:

Parameter Description Typ. Unit.
Carrier frequency   1090 MHz
RX sensitivity Operation at 50Ω -85 dBm
Power supply   3.3V (digital) 5V(RF) DCV
Current consumption   260 mA
Dimensions   19x18 (a) 19x22.5 (b) mm
