Aero RPi Hat

Ground Stations with Raspberry Pi and ADS-B and ADS-B

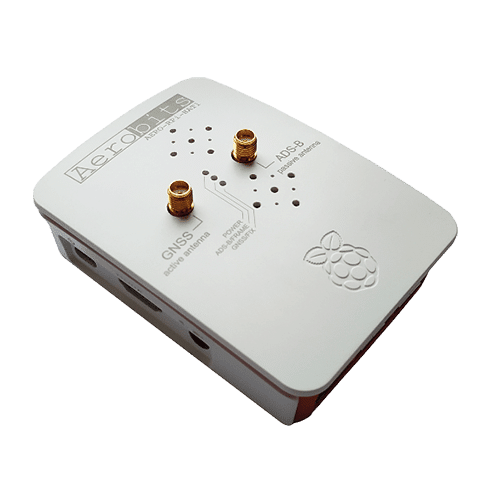

  • Aero RPI HAT integrates Micro ADS-B and GNSS technologies with the most popular single board computer in the world. This allows easy access to data collected by the TT-MC1 module.
  • Device offers the possibility of receiving and decoding ADS-B and Mode-A/C/S.
  • Integration of GNSS technology allows marking frames with an accurate timestamp for multilateration purposes.
  • It is possible to connect Dongle LTE/GSM via a USB port.
  • For easy outdoor installation, the entire system can be powered by using POE – Power-over-Ethernet technology (Optional, at additional charge) – so the only cable you need to connect is an Ethernet cable.

Features:

Application:

See beyond

Basic Electrical specification:

ParameterDescriptionTyp.Unit.
Raspberry model Raspberry Pi 3 Model B+
Raspberry CPU ARM11 900MHz
PoE standard (Optional, at additioanl charge) IEEE 802.3at
Carrier frequency TT-MC1a1090MHz
RX sensitivity For operation at 50Ω-85dBm
Typical current consumption 500mA
Weight 45g
Dimensions 85.6 x 56.5 x 17.0mm
